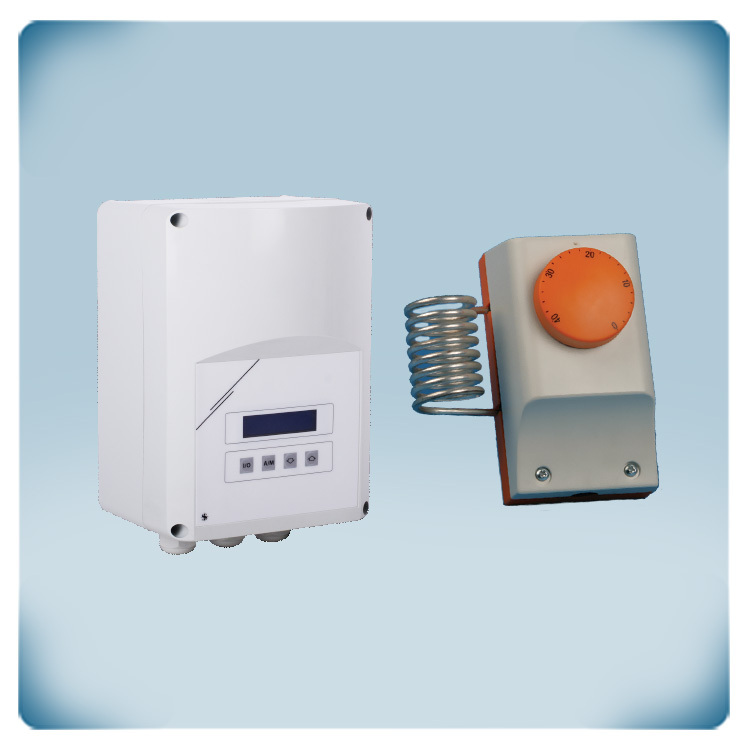

AC motor 5 A | temperature control

5-stage fan speed controller with built-in calendar function. Controls single phase motors. Maximum current 5 A. The speed of the AC fan is regulated by reducing the motor voltage using autotransformer technology. This technology produces a perfect sinusoidal motor voltage and ensures quiet operation of the motor. Two optimum motor speeds selectable. Day-week programmed timer allows switching. TK monitoring function stops the motor in case of overheating. Motor restarts automatically after a power failure. The enclosure can be surface mounted indoors (IP54).

This mechanical thermostat controls temperatures between 0 and 40 °C. The output contact can switch loads up to 16 A. The requested temperature can be adjusted via the rotary knob. The ambient temperature is measured via the spiral sensor. This thermostat can be used for heating or cooling ventilation applications in warehouses, greenhouses, stables, etc. The enclosure can be wall-mounted. It offers an IP54 protection against ingress of dust and moisture. This thermostat does not require a supply voltage.
