AC motor 3 A | variable speed control | kickstart

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code SD7------001

Current stock 81 U.

Factory lead time 4 Week(s)

Solution description

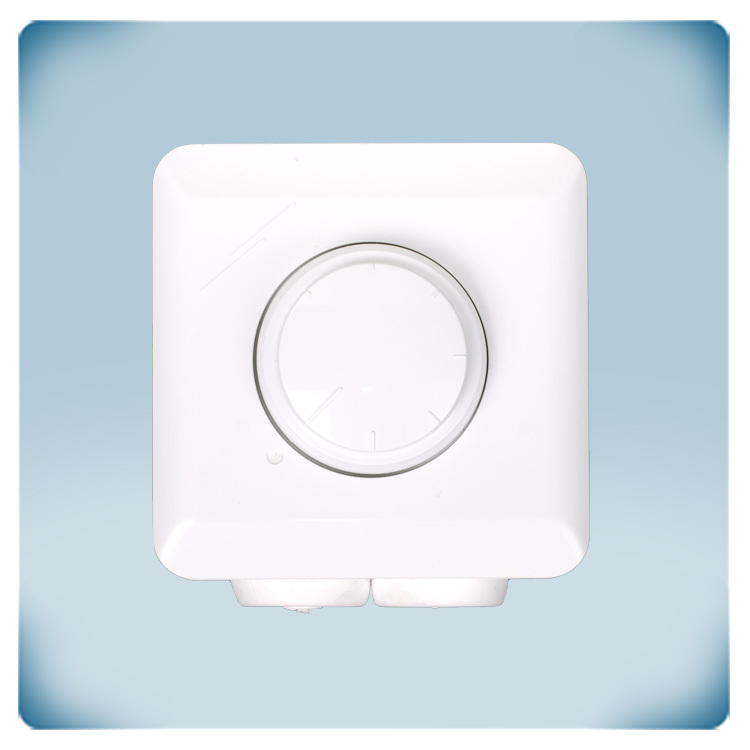

Variable speed control for AC fans with single-phase motor. The maximum motor current is 3 A. Fan speed can be set via the rotary knob from high to low speed. In utmost counter clockwise position, the motor is disabled. When turning the knob clockwise, the motor will accelerate immediately to high speed. When the knob is turned further clockwise, the motor will slow down towards low speed. The low speed limit can be adjusted via an internal trimmer. The supply voltage is 230 VAC. The AC fan speed is controlled by reducing the motor voltage via phase angle control - Triac technology.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

SDX-1-30-DT

1 U.

This residential fan speed controller is designed for regulating exhaust fans or ceiling fans up to 3 A. It is an excellent choice for controlling ceiling fans, exhaust fans or bathroom ventilation fans. The controller incorporates TRIAC technology designed for single-phase, voltage-controllable AC motors. You can set the minimum speed using the internal trimmer. The precise control algorithm (microprocessor-based) ensures quiet motor operation, which, along with its modern design, distinguishes this variable speed controller. The enlclosure is suited for inset and surface mounting.
