AC motor 2,5 A | variable speed control

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code VF1------001

Current stock 10 U.

Factory lead time 4 Week(s)

Solution description

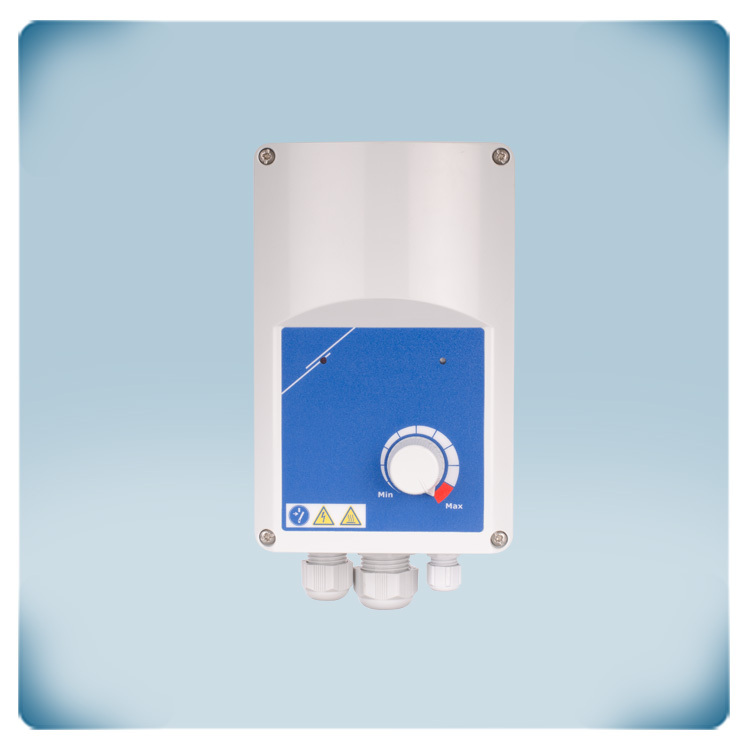

Variable speed control for AC fans with single-phase motor. The maximum motor current is 2,5 A. Both motor and controller will operate exceptionally quiet, even at low speed. Typically, this solution is used to control AC fans in HVAC applications. The motor speed can be adjusted via the built-in potentiometer. The TK monitoring function deactivates the motor in case of overheating.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

VFSC9-25-FP

1 U.

Exceptionally quiet fan speed control for single-phase motors. The (combined) maximum current is 2,5 A. The fan speed is controlled by varying the motor voltage via Pulse Width Modulation - IGBT technology. The motor voltage is regulated via the potentiometer, via the analogue input signal or via Modbus RTU communication. The analogue input type is selectable. The TK monitoring function disables the motor in case motor overheating is detected. The supply voltage is 110-240 VAC / 50-60 Hz. A remote start - stop command can be generated via the digital input. No configuration is required - easy to use! Extra silent motor operation is guaranteed thanks to the technology used!
