Pressure transmitter | display | 0-2000 Pa | PoM
Product description

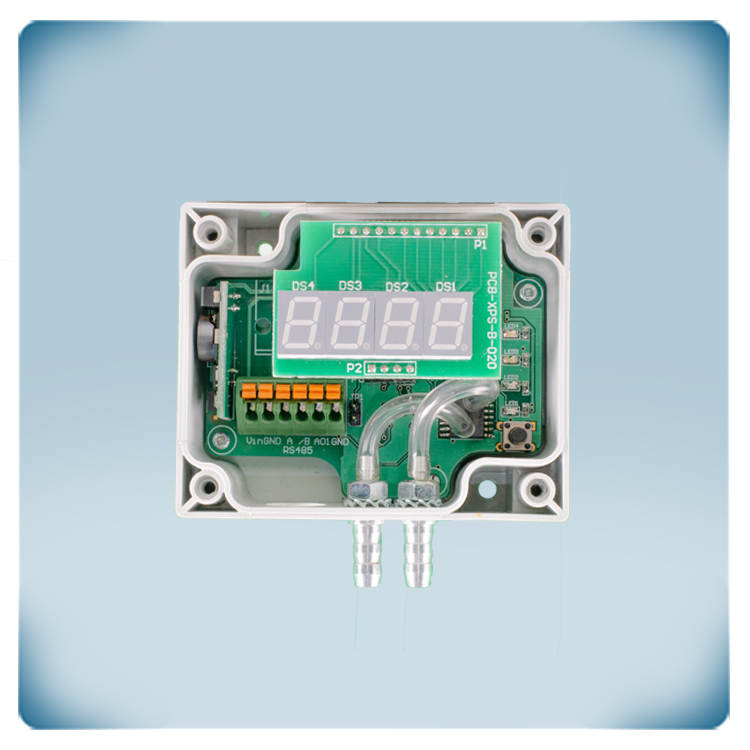

This is a differential pressure sensor equipped with a display, designed to operate within the range from 0 to 2.000 Pa. It is Power over Modbus supplied with 24 VDC, i.e. both the power supply and communication are transmitted via one UTP cable.
The sensor can measure differential pressure or air volume flow; to obtain air velocity readings, you can connect an external Pitot tube set, e.g. the PSET-PTS.
The measured values are visualised through a 7-segment LED display and transmitted via Modbus RTU protocol. The sensor features four LED indicators providing visual indication for both the device status and measured values. All the setting are adjusted via Modbus RTU.
Documents
Additional specifications and description
Differential pressure, air volume flow or air velocity?
This sensor measures differential pressure [Pa]. Based on this measurement, air volume flow [m³/hr] or air velocity [m/s] can be calculated. To calculate air volume flow based on the K-factor of the fan, use the connection set type PSET-PVC-200 or PSET-QF-200. This connection set can also be used to measure differential pressure. To calculate air volume flow based on the duct cross section [cm²] or air velocity [m/s], use the connection set type PSET-PTS-200 or PSET-PTL-200.![DPS with PSET-PVC](/Images/lazy-loaded-images.webp)
This sensor measures differential pressure [Pa]. Based on this measurement, air volume flow [m³/hr] or air velocity [m/s] can be calculated. To calculate air volume flow based on the K-factor of the fan, use the connection set type PSET-PVC-200 or PSET-QF-200. This connection set can also be used to measure differential pressure. To calculate air volume flow based on the duct cross section [cm²] or air velocity [m/s], use the connection set type PSET-PTS-200 or PSET-PTL-200.
![DPS with PSET-PVC](/en/files/article/image/description/dps-m-2k0 -2/differential-pressure-sensor-with-display-and-pset-pvc.jpg)
Visual indication
The 7-segment LED display visualises the measured pressure, volume flow or air velocity. On top of that, the green, yellow and red LED offer a visual indication of the measured value. The green LED indicates that the pressure level is within range. When the pressure level enters the alert range, the yellow LED lights up. Red means: differential pressure out of range. The LEDs can also indicate the status of the air volume flow or air velocity. The second green LED indicates the sensor status. It is activated when power supply and Modbus RTU communication are enabled.
The 7-segment LED display visualises the measured pressure, volume flow or air velocity. On top of that, the green, yellow and red LED offer a visual indication of the measured value. The green LED indicates that the pressure level is within range. When the pressure level enters the alert range, the yellow LED lights up. Red means: differential pressure out of range. The LEDs can also indicate the status of the air volume flow or air velocity. The second green LED indicates the sensor status. It is activated when power supply and Modbus RTU communication are enabled.
Reduced installation time
One RJ45 connector is all it takes to connect this sensor! Modbus RTU communication and 24 VDC power supply are connected via one UTP cable - we call it Power over Modbus or PoM. All measured values are available via Modbus RTU communication. To facilitate wiring, we recommend to use a Sentera 24 VDC power supply with RJ45 connector. These power supplies also offer protection against short circuit, overload and overvoltage. A 24 VDC supply voltage increases the safety and reliability of your installation.
One RJ45 connector is all it takes to connect this sensor! Modbus RTU communication and 24 VDC power supply are connected via one UTP cable - we call it Power over Modbus or PoM. All measured values are available via Modbus RTU communication. To facilitate wiring, we recommend to use a Sentera 24 VDC power supply with RJ45 connector. These power supplies also offer protection against short circuit, overload and overvoltage. A 24 VDC supply voltage increases the safety and reliability of your installation.
High quality
The enclosure is made of high-quality r-ABS VO (UL94) plastic. This material is heat resistant, very tough and offers good protection against impacts. The pressure connection nozzles are made from Aluminum. The sensor enclosure offers an IP65 protection against ingress of dirt and water. This sensor can be wall-mounted.
The enclosure is made of high-quality r-ABS VO (UL94) plastic. This material is heat resistant, very tough and offers good protection against impacts. The pressure connection nozzles are made from Aluminum. The sensor enclosure offers an IP65 protection against ingress of dirt and water. This sensor can be wall-mounted.
