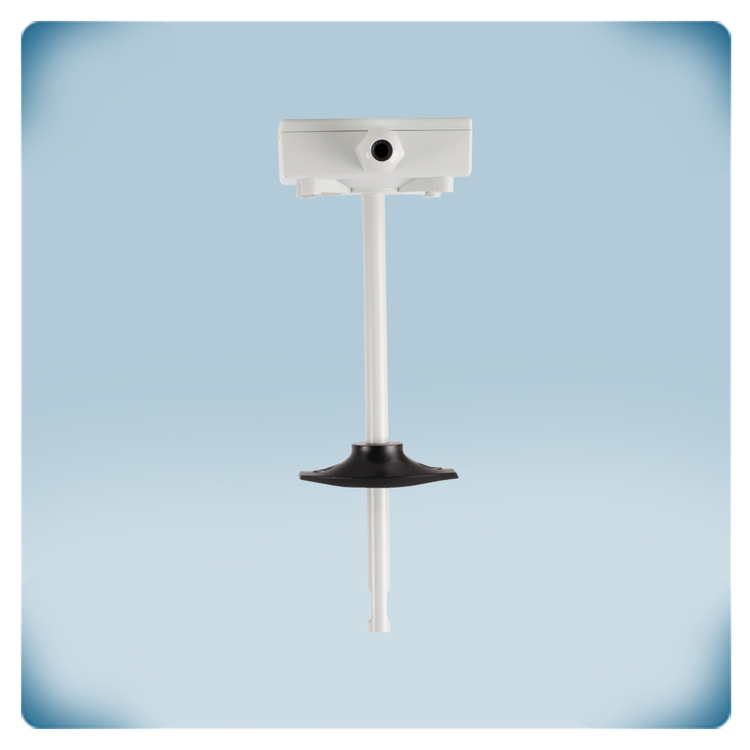

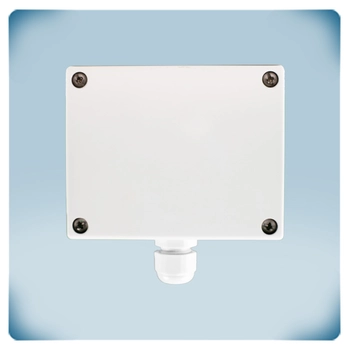

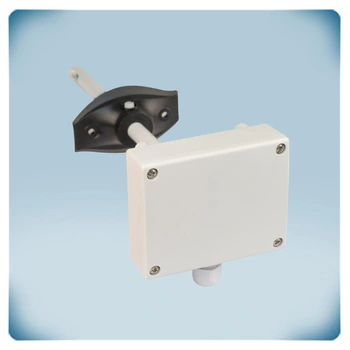

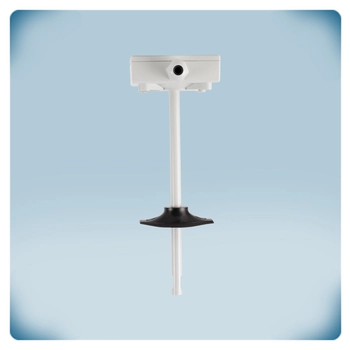

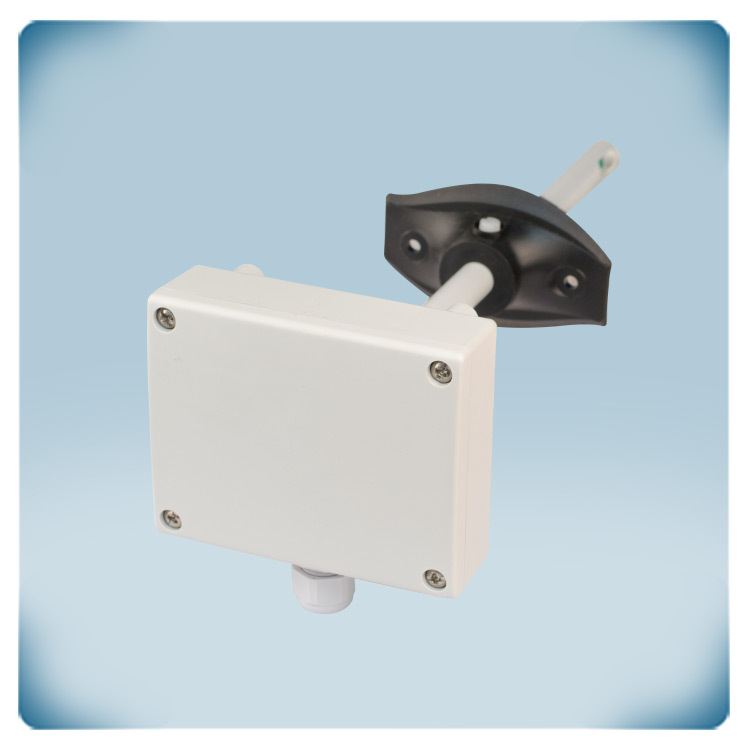

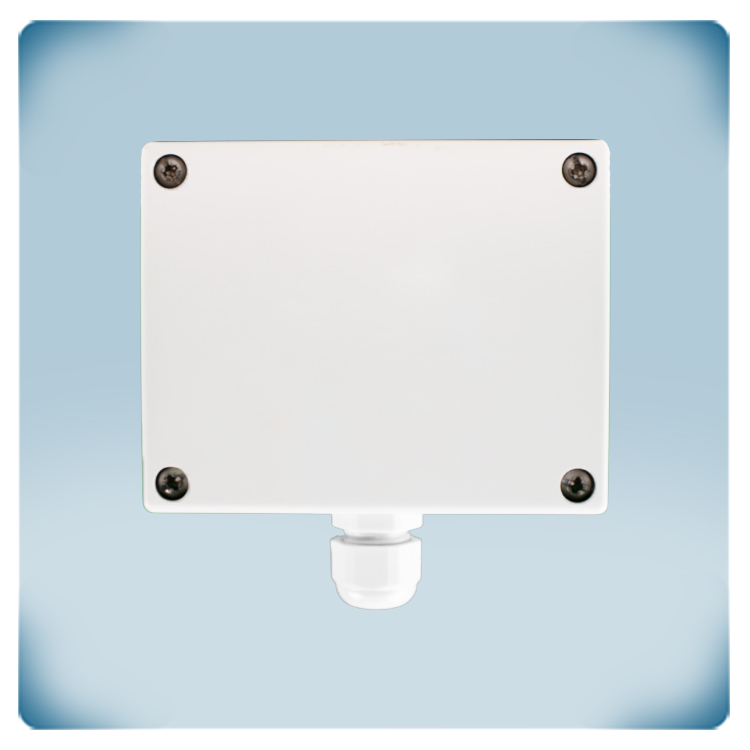

Duct TVOC sensor, 24 VAC-VDC
Product description
Duct CO2 sensor. It measures temperature, relative humidity and TVOC in air ducts. The supply voltage is 24 VAC or 24 VDC. The measured values are transmitted via three analogue outputs and via Modbus RTU communication. The output type can be selected. The TVOC sensor element is replaceable. All settings can be adjusted via Modbus RTU.
Additional specifications and description
Optimised for air ducts
TVOC or Total Volatile Organic Compounds evaporate from substances such as cleaning products, adhesives, paints, etc. TVOCs are also emitted from humans and animals. That is why a TVOC sensor provides a good, overall image of air quality. TVOC sensors are the best choice to control a ventilation system in residential environments. This HVAC transmitter measures temperature, relative humidity and TVOC in air ducts. This sensor will function best if it is installed in a straight section of the air duct. Avoid installation in turbulent air zones nearby filters, fans, cooling coils, etc. Position the sensor correctly with respect to the airflow direction. Please consult the mounting instructions for more detailed information.
TVOC or Total Volatile Organic Compounds evaporate from substances such as cleaning products, adhesives, paints, etc. TVOCs are also emitted from humans and animals. That is why a TVOC sensor provides a good, overall image of air quality. TVOC sensors are the best choice to control a ventilation system in residential environments. This HVAC transmitter measures temperature, relative humidity and TVOC in air ducts. This sensor will function best if it is installed in a straight section of the air duct. Avoid installation in turbulent air zones nearby filters, fans, cooling coils, etc. Position the sensor correctly with respect to the airflow direction. Please consult the mounting instructions for more detailed information.
How does it work?
This sensor has three analogue outputs. Each of them transmits one of the measured values. E.g. by default, output 1 will transmit 0 V at 0 °C and 10 V at 50 °C. Each output value varies proportionally in function of the measured temperature, humidity or TVOC concentration. The measured temperature is available via output 1, relative humidity via output 2 and TVOC concentration via output 3.
This sensor doesn't require configuration. Once installed, it is ready to use. The default settings will do for most applications. If necessary, the settings can be adjusted via Modbus RTU. For example, a different output type can be selected to make it compatible with other devices: 0-10 VDC / 0-20 mA / 0-100 % PWM. The Modbus register map provides a complete overview of all adjustable settings.
3-wire connection

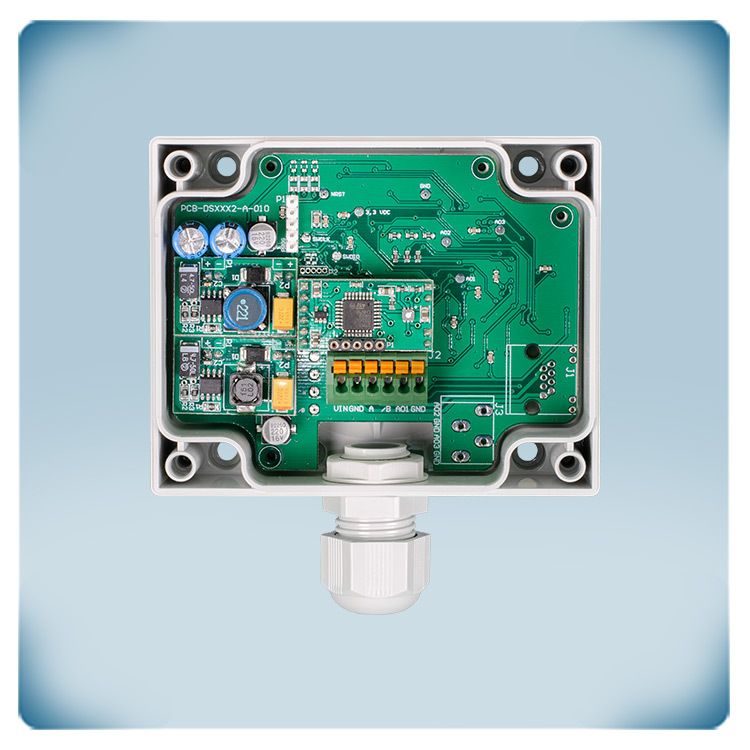

This sensor can be supplied with 24 VDC or with 24 VAC. It is intended for 3-wire connection. The ground of the output (GND) is internally connected to the ground of the supply voltage (V-). Make sure not to connect this common ground to other devices that are powered by a DC voltage.
High quality

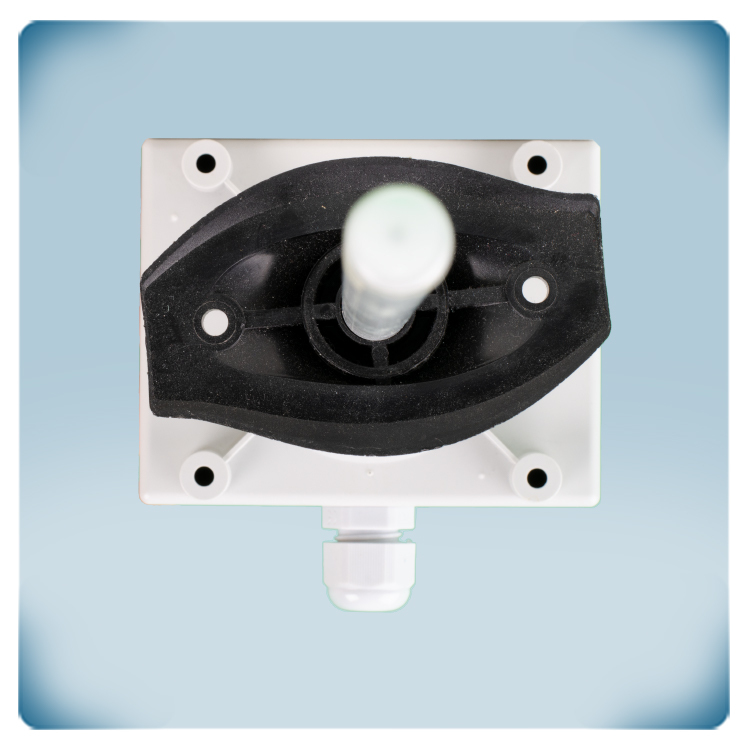

Each sensor is calibrated and tested in our factory. In the unlikely event of TVOC sensor element failure, this module can be replaced. We use sensor elements and components of high quality. This ensures the long-term stability and accuracy of this HVAC transmitter. The enclosure offers an IP54 protection against ingress of dust and moisture. The sensor element is integrated in the probe of the duct sensor. This probe has an opening to have a direct contact between the air flow and the sensor element. The sensor probe offers an IP20 protection.
