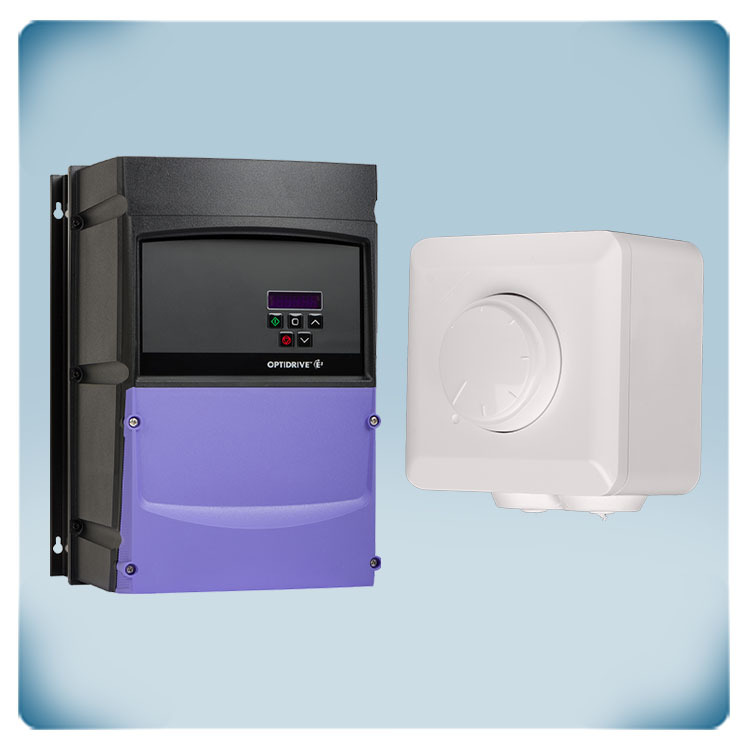

Induction motor 400 V | remote control | 2,2 A | 0,75 kW | IP66

Variable frequency converter in dust-tight and washdown ready enclosure. It controls 400 Volt motors to run fans and pumps in HVAC applications. This VFD is particularly simple to use. For most applications it is not necessary to change the default settings. The required supply voltage is three-phase 400 Volt. Various types of 3ph 400 Volt motors can be controlled: IE3 or IE4 induction motors, permanent magnet motors, brushless DC or synchronous reluctance motors. One or multiple motors with a (combined) maximum current of 2.2 A can be controlled by this drive. Motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP66 protection against ingress of water and dust. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-140022-3F1A

With this 10 KOhm potentiometer you can directly control EC fans. If you want to control the speed of an AC motor, connect this potentiometer to an Electronic Fan Speed Controller (EVS, MVS) or frequency converter (FI-E). This potentiometer has an adjustable resistance of 0-10 kΩ. The device does not require a specific power supply, but the input signal must be between 0 and 24 VDC. Most EC fans, electronic speed controllers or frequency converters have an output with the required voltage. Depending on the position of the dial, the feedback voltage varies, regulating the Fan Speed. The dry contact output can be used to remotely give a start-stop command to the fan or other equipment. The splash-proof housing allows recessed installation (IP44) or surface mounting (IP54).
