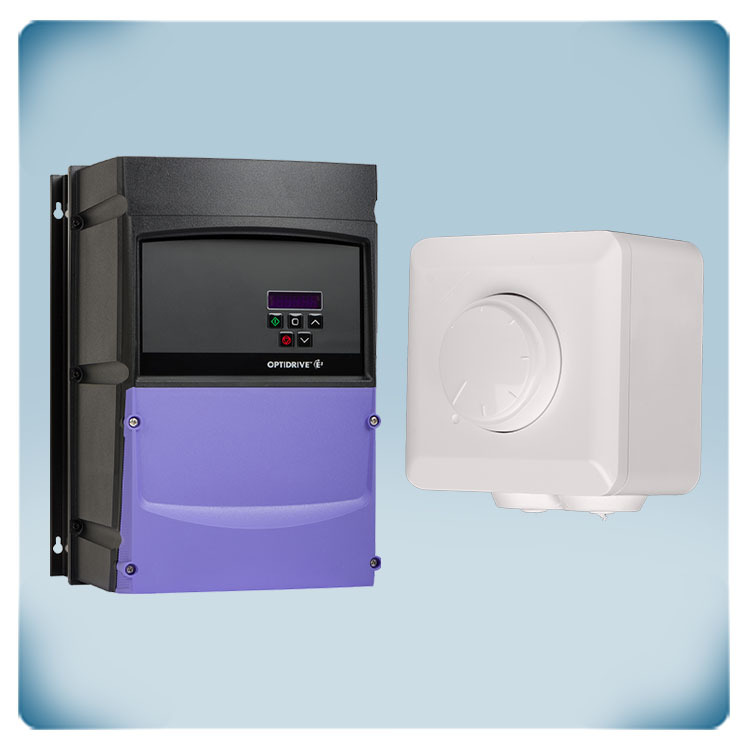

Induction motor 400 V | remote control | 18 A | 7,5 kW | IP66

Variable frequency converter in dust-tight and washdown ready enclosure. It controls 400 Volt motors to run fans and pumps in HVAC applications. This VFD is particularly simple to use. For most applications it is not necessary to change the default settings. The required supply voltage is three-phase 400 Volt. Various types of 3ph 400 Volt motors can be controlled: IE3 or IE4 induction motors, permanent magnet motors, brushless DC or synchronous reluctance motors. One or multiple motors with a (combined) maximum current of 18 A can be controlled by this drive. Motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP66 protection against ingress of water and dust. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-340180-3F4A

Introducing the SDP-M010-BT, your ultimate solution for precise control in ventilation systems. This advanced potentiometer comes equipped with Modbus RTU integration, allowing seamless networking and optional connection to the SenteraWeb cloud. It can also be seamlessly integrated into a Modbus RTU compatible Building Management System (BMS). Designed for versatility, the SDP-M010-BT provides control over EC fans, damper actuators, AC fan speed controllers, or frequency inverters. Take command with its continuous variable output signal, manually adjusted through its rotary knob. The SDP-M010-BT comes without an OFF-position. No need to worry about inadvertently turning off your system. From minimum and maximum, via inverse control to output overwrite; these and other parameters can all be set in the Modbus registers, making them accessible via the network or even over the cloud. Built to withstand various environmental conditions, the SDP-M010-BT features a splash-proof enclosure, enabling both inset mounting (IP44) and surface mounting (IP54). This adaptability ensures reliable performance across diverse settings, providing assurance for all your ventilation control requirements. Efficient, precise, and adaptable, the SDP-M010-BT stands out as the preferred choice for controlling ventilation systems. Experience the power at your fingertips, as this device seamlessly blends functionality with durability, ensuring optimal performance in every setting.
