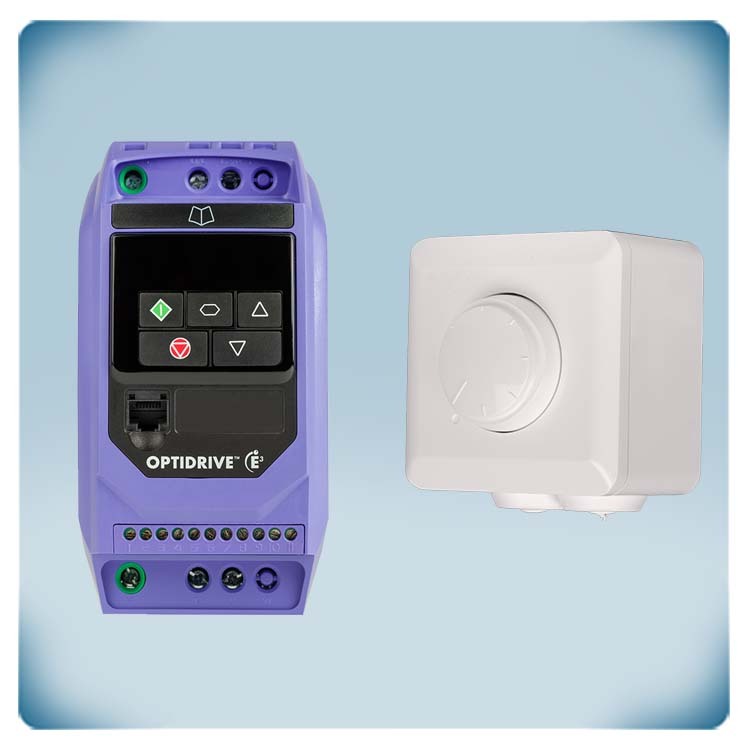

Induction motor 1ph 230 V | remote control | 10,5 A | 1,1 kW | IP20

Variable speed drive for single-phase motors. The motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. This frequency drive is designed to control fans or pumps in HVAC applications. The maximum motor current is 10.5 A. This frequency inverter can control single-phase permanent split capacitor motors and shaded pole induction motors. The supply voltage is 230 Volt. The integrated EMC filter is Class C1. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP20 protection against ingress of dust. Manufacturers code: ODE-3-220105-1F42-01

Introducing the SDP-M010-AT, your ultimate solution for precise control in ventilation systems. This advanced potentiometer comes equipped with Modbus RTU integration, allowing seamless networking and optional connection to the SenteraWeb cloud. It can also be seamlessly integrated into a Modbus RTU compatible Building Management System (BMS). Designed for versatility, the SDP-M010-AT provides control over EC fans, damper actuators, AC fan speed controllers, or frequency inverters. Take command with its continuous variable output signal, manually adjusted through its rotary knob. The OFF-position feature ensures simplicity; a quick twist counter-clockwise disables the control signal. From minimum and maximum, via inverse control to output overwrite; these and other parameters can all be set in the Modbus registers, making them accessible via the network or even over the cloud. Built to withstand various environmental conditions, the SDP-M010-AT features a splash-proof enclosure, enabling both inset mounting (IP44) and surface mounting (IP54). This adaptability ensures reliable performance across diverse settings, providing assurance for all your ventilation control requirements. Efficient, precise, and adaptable, the SDP-M010-AT stands out as the preferred choice for controlling ventilation systems. Experience the power at your fingertips, as this device seamlessly blends functionality with durability, ensuring optimal performance in every setting.
