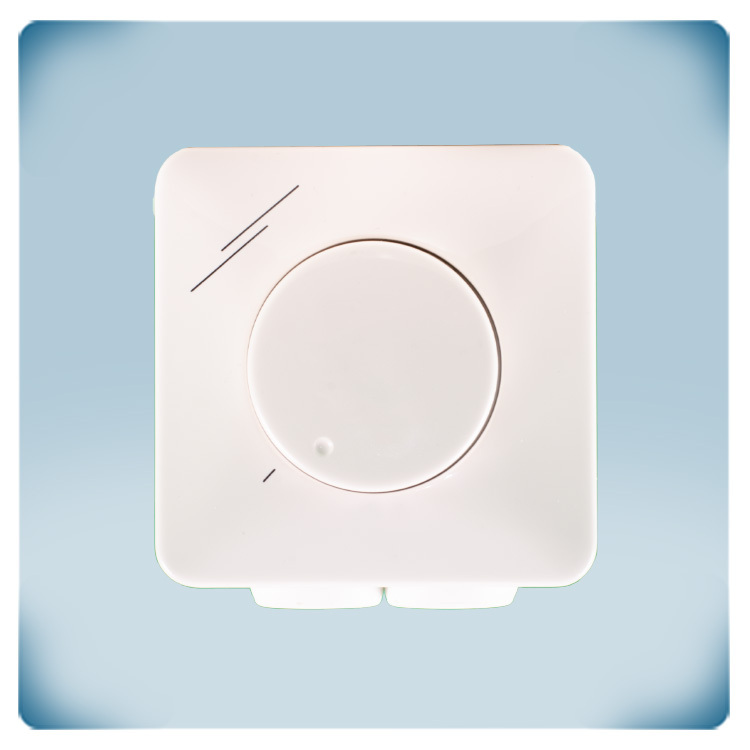

White plastic enclosure with rotary knob

EC motor | 0-10 Volt potentiometer | variable fan speed control

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code MT7------001

Current stock 71 U.

Factory lead time 4 Week(s)

Solution description

EC fan speed can be controlled manually via the potentiometer. In OFF position, the motor is disabled. It controls fan speed from low to high. The supply voltage is 230 VAC. The EC motor is controlled via a 1-10 V analogue control signal.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

MTV-1-010-PM

1 U.

The MTV-1-010-PM Potentiometer is your ideal solution for precise manual control of EC fans, AC fan speed controllers, or damper actuators. This potentiometer operates with a 230 VAC supply voltage, offering a continuous variable output signal that can be easily set using the rotary knob, ensuring a seamless user experience. Via a jumper you can choose from various output types, including 1-10 VDC, 2-20 mA, or 10-100% PWM, providing adaptability to diverse applications. The output range is further customizable through two internal trimmers, allowing adjustment between Vmin (10-70%) and Vmax (30-100%). At the Off-position, the MTV-1-010-PM provides a complete shut-off with 0 V, 0 mA, or 0% PWM output. Crafted with precision, the MTV-1-010-PM comes in a splash-proof enclosure suitable for both inset (IP44) and surface (IP54) mounting. Whether you need inset or surface mounting, the MTV-1-010-PM potentiometer is designed for both.
