AC motor 7,5 A | manual 5-step fan speed control

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code S1N------001

Current stock 29 U.

Factory lead time 5 Day(s)

Solution description

Manual 5 speed control for single-phase voltage controllable motors. The maximum motor current is 7,5 A. Typically, it regulates fan speed in HVAC applications. The fan speed can be selected via the 5-step rotary switch. In OFF position (zero), the motor is disabled. The autotransformer technology generates a motor voltage with a perfect sinusoidal shape. This guarantees quiet motor operation.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

STR-1-75L22

1 U.

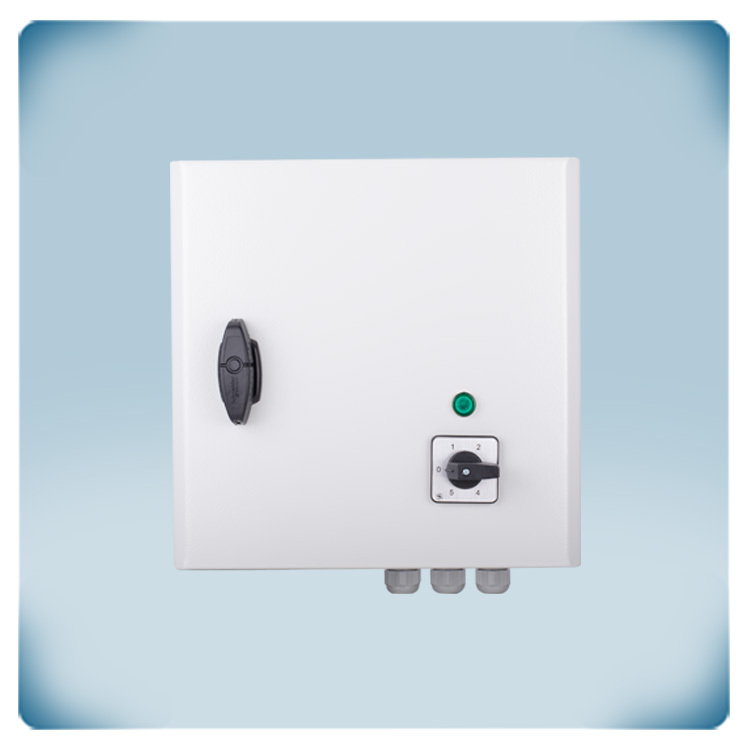

Single-phase motor transformer fan speed controller. The maximum current (combined) is 7,5 amps. The rotary switch controls the AC fan speed, which ranges from low to high in 5 steps. There is also an OFF position on this rotary switch. The motor voltage is varied in 5 steps to control the motor speed. The perfect sinusoidal shape of the output voltage ensures quiet motor operation. The enclosure provides IP54 protection against dirt, dust, and moisture ingress. It can be wall-mounted in indoor settings. This 5-step speed controller is commonly used to control kitchen hood exhaust fans, ceiling fans, extraction fans, and other similar devices.
