AC motor 1,5 A | variable speed control

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!
Article code EV1MT6---001
Current stock 10 U.
Factory lead time 5 Day(s)

Solution description

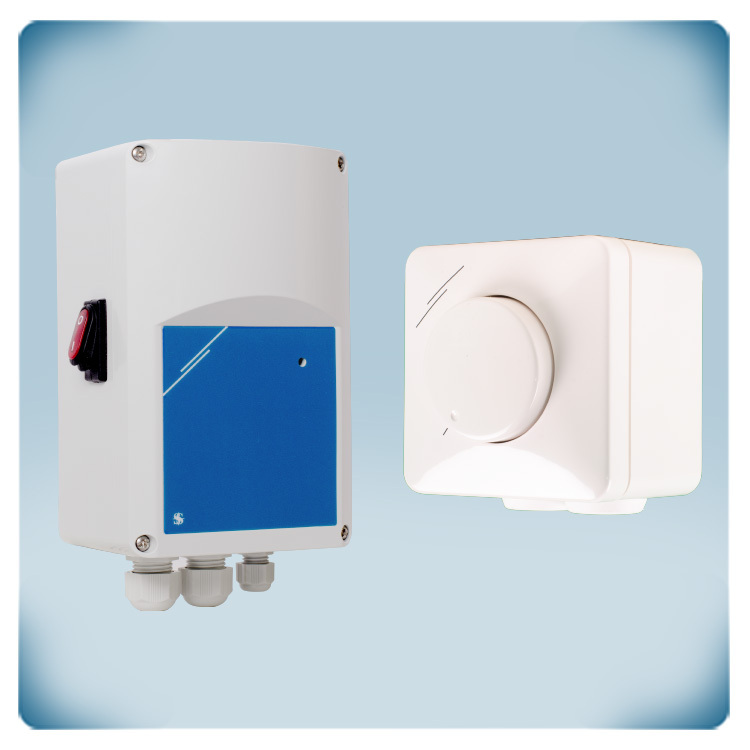

Variable speed control for single-phase voltage controllable motors. The maximum motor current is 1,5 A. Typically, this solution is used to control AC fans or pumps in HVAC applications. The motor speed can be selected via the external potentiometer. At zero position, the motor stops. It is advisable to limit cable length between potentiometer and fan speed controller. The supply voltage is 230 VAC.

Components of this solution

Article code
Quantity
Description

EVS-1-15-DM

1 U.

The EVS-1-15-DM is an electronic speed controller for automatic speed control of single-phase voltage-controllable motors (230 VAC / 50—60 Hz). Equipped with Modbus RTU communication, this unit offers remote control options, adjustable off level, and min. and max. output voltage settings. The maximum current is 1.5 A and the supply voltage is 230 VAC. The integrated ON-OFF switch and digital input enable versatile motor control. Adjustments are possible via internal trimmers and Modbus RTU.

MTV-1-010-NA

1 U.

The MTV-1-010-NA potentiometer is a practical device designed to generate a continuous variable signal for the remote control of various HVAC equipment. This straightforward potentiometer plays a crucial role in regulating EC fans, damper actuators, AC fan speed controllers (EVS or MVS series), or frequency inverters (FI-E series). Operated with a 230 VAC supply voltage, the MTV-1-010-NA provides a reliable output voltage range of 0-10 VDC. Its primary function is to offer precise control, allowing you to adjust the control signal according to the position of the rotary knob. This makes it a valuable component in scenarios where remote control of HVAC equipment is essential. A notable feature of the MTV-1-010-NA is its intentional lack of an OFF position. In situations where maintaining a minimum air supply is technically or legally required, this potentiometer ensures that the control signal never reaches 0 V. Even when the rotary knob is turned to the minimum position (counterclockwise), the control signal remains at the minimum value, approaching 0 VDC. In combination with speed controllers with analog input, this unique characteristic addresses specific applications where continuous operation is necessary. The MTV is suitable for both inset mounting (IP44) and surface mounting (IP54), providing installation flexibility to meet your specific requirements.
