AC motor 1,5 A | variable speed control | softstart

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code SD8------001

Current stock 168 U.

Factory lead time 4 Week(s)

Next arrival 07/03/2025 - 240 U.

Solution description

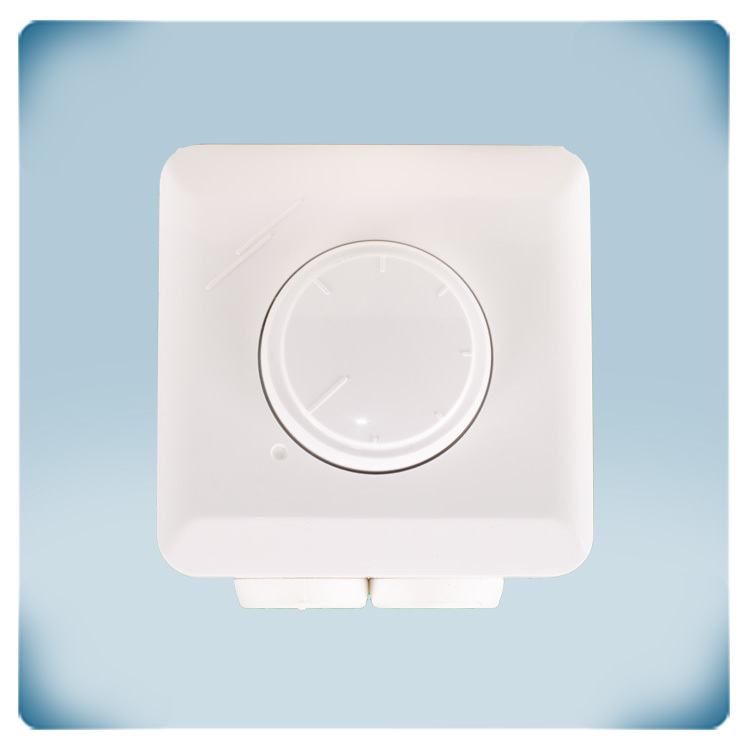

Variable speed control for AC fans with single-phase motor. The maximum motor current is 1,5 A. The fan speed can be set via the rotary knob from low to high speed. In utmost counter clockwise position, the motor is disabled. When turning the knob clockwise, the motor will accelerate from low to high speed. The low speed limit can be adjusted via an internal trimmer. The supply voltage is 230 VAC. The AC fan speed is controlled by reducing the motor voltage via phase angle control - Triac technology.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

SDY-1-15-DT

1 U.

This AC fan speed controller is designed for use in residential settings, allowing for adjustable fan speed from low to high. The combined maximum motor current capacity is 1.5 A. This controller is specifically designed to regulate AC fans equipped with voltage-controllable single-phase motors. It offers the flexibility to fine-tune the minimum fan speed through an internal trimmer. When the motor is activated, the unregulated output also remains active. The housing supports both inset and surface mounting options and operates at a supply voltage of 230 VAC. Phase angle control, employing TRIAC technology, is utilized to reduce motor voltage and effectively manage fan speed. This variable speed controller is commonly applied to manage various applications, including ceiling fans, bathroom exhaust fans, and extraction fans, among others
