AC motor 1,5 A | variable speed control | DIN rail | softstart

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!
Article code DRY------001
Current stock 1 U.
Factory lead time 4 Week(s)
Next arrival 06/12/2024 - 20 U.

Solution description

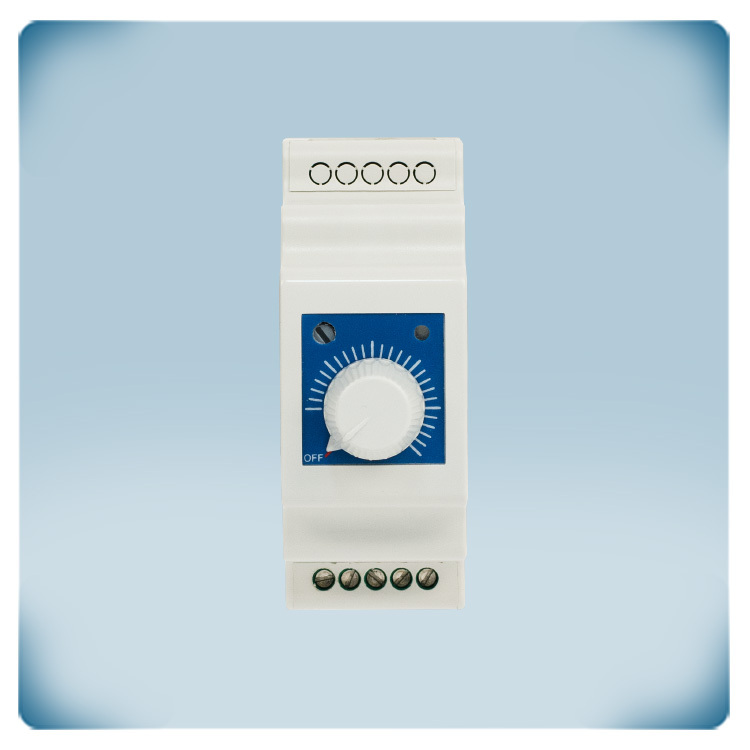

Variable speed control for AC fans with single-phase motor. The maximum motor current is 1,5 A. The enclosure requires DIN rail mounting. Fan speed can be adjusted via the potentiometer from low to high speed. In OFF position, the motor is disabled. The supply voltage is 230 VAC. The fan speed is regulated by varying the motor voltage via phase angle control - Triac technology.

Components of this solution

Article code
Quantity
Description

DRY-1-15-AT

1 U.

The electronic fan speed controller from the DRY series is a DIN rail-mounted electronic controller designed for single-phase voltage controllable motors. It allows for manual adjustment of the motor voltage using a rotary knob, providing an output voltage variation from 60 to 230 VAC. Maximum motor current of 1,5 A. The rotary knob facilitates the regulation of the output voltage from minimum to maximum, including an OFF position. The minimum speed can be fine-tuned through a trimmer. A green LED indicates the operational status.
