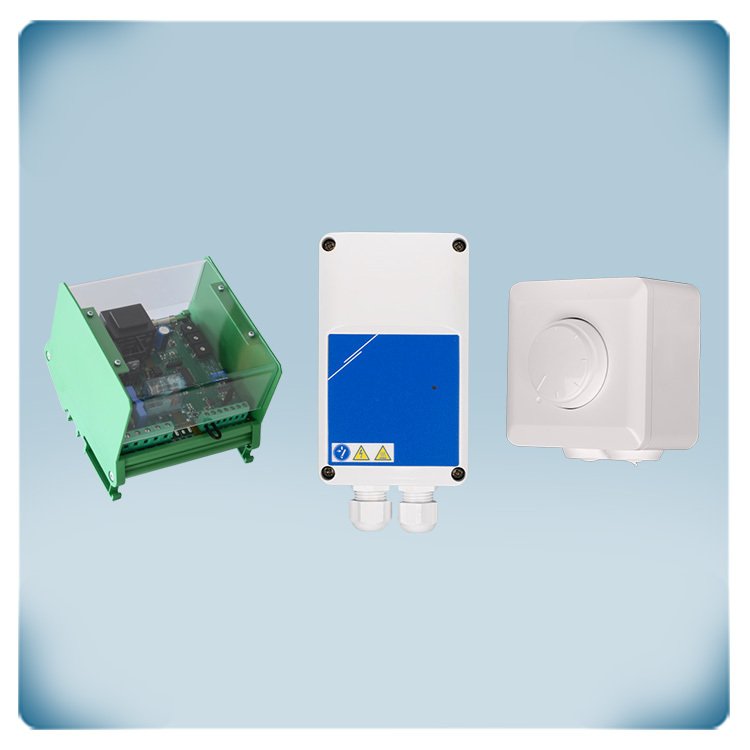

AC motor 1,5 A | Remote variable speed control | DIN rail

The advanced MVS-1-15CDM speed controller is designed for precise control of 230 V single-phase motors. Its maximum rated current is 1,5 A. The controller is equipped with Modbus RTU communication, it offers remote control options, adjustable off level, and time-limited motor operation. With an invertible analog input signal (0-10 VDC or 0-20 mA) and features like kick start, soft start, and multiple operating modes, the MVS series ensures reliable and expert motor speed control.

Introducing the SDP-M010-BT, your ultimate solution for precise control in ventilation systems. This advanced potentiometer comes equipped with Modbus RTU integration, allowing seamless networking and optional connection to the SenteraWeb cloud. It can also be seamlessly integrated into a Modbus RTU compatible Building Management System (BMS). Designed for versatility, the SDP-M010-BT provides control over EC fans, damper actuators, AC fan speed controllers, or frequency inverters. Take command with its continuous variable output signal, manually adjusted through its rotary knob. The SDP-M010-BT comes without an OFF-position. No need to worry about inadvertently turning off your system. From minimum and maximum, via inverse control to output overwrite; these and other parameters can all be set in the Modbus registers, making them accessible via the network or even over the cloud. Built to withstand various environmental conditions, the SDP-M010-BT features a splash-proof enclosure, enabling both inset mounting (IP44) and surface mounting (IP54). This adaptability ensures reliable performance across diverse settings, providing assurance for all your ventilation control requirements. Efficient, precise, and adaptable, the SDP-M010-BT stands out as the preferred choice for controlling ventilation systems. Experience the power at your fingertips, as this device seamlessly blends functionality with durability, ensuring optimal performance in every setting.

A 24 Volt supply module is an electronic device that converts an input voltage of 230 VAC to a 24 VDC output voltage. It is frequently used in a variety of applications, including industrial automation, medical equipment, and building automation. This switching power supply can alter an 85-264 VAC input voltage into a 24 VDC output voltage. It can supply loads up to 40 Watts. Your electrical installation is more secure because of the overload and overvoltage protection. The load can be connected using either an RJ45 connector or a screw terminal block. Due to its firm enclosure, which offers IP65 protection against the ingress of water and dirt, is the installation of this power supply in harsh environments possible. In comparison to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.
