AC motor 10 A | variable speed control

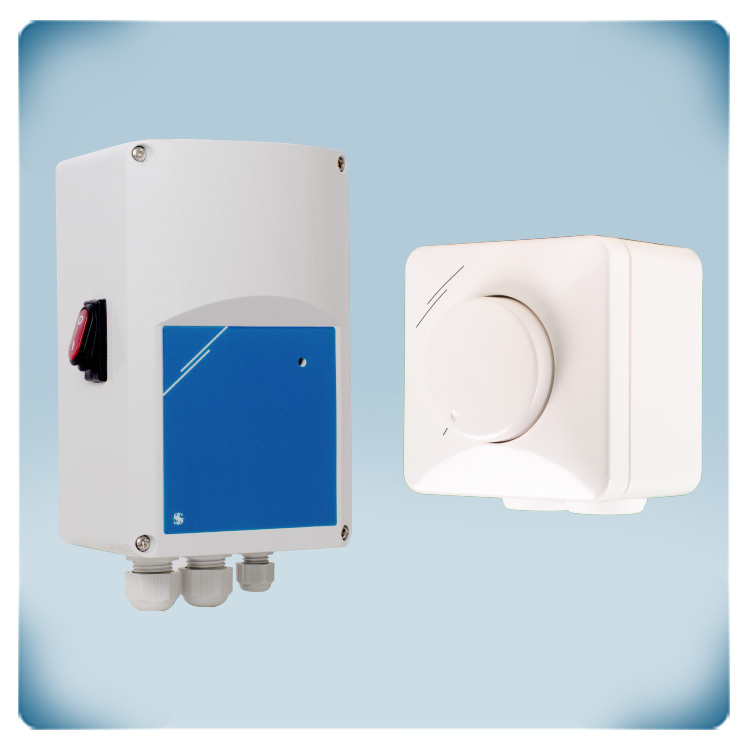

The EVS-1100-DM electronic speed controller is a sophisticated solution for automatic speed control of single-phase voltage-controllable motors (230 VAC / 50—60 Hz). Equipped with Modbus RTU communication, this unit offers remote control options, adjustable off level, and min. and max. output voltage settings. With a maximum current of 10 A, it provides time-limited motor operation initiated by logic or switch signals. The integrated ON-OFF switch and digital input enable versatile motor control. Precise adjustments are possible with internal trimmers and Modbus RTU, and the supply voltage is a reliable 230 VAC.

The MTV-1-010-NA potentiometer is a practical device designed to generate a continuous variable signal for the remote control of various HVAC equipment. This straightforward potentiometer plays a crucial role in regulating EC fans, damper actuators, AC fan speed controllers (EVS or MVS series), or frequency inverters (FI-E series). Operated with a 230 VAC supply voltage, the MTV-1-010-NA provides a reliable output voltage range of 0-10 VDC. Its primary function is to offer precise control, allowing you to adjust the control signal according to the position of the rotary knob. This makes it a valuable component in scenarios where remote control of HVAC equipment is essential. A notable feature of the MTV-1-010-NA is its intentional lack of an OFF position. In situations where maintaining a minimum air supply is technically or legally required, this potentiometer ensures that the control signal never reaches 0 V. Even when the rotary knob is turned to the minimum position (counterclockwise), the control signal remains at the minimum value, approaching 0 VDC. In combination with speed controllers with analog input, this unique characteristic addresses specific applications where continuous operation is necessary. The MTV is suitable for both inset mounting (IP44) and surface mounting (IP54), providing installation flexibility to meet your specific requirements.
