AC motor 10 A | Remote fan speed control | display

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!
Article code EV0RD0---001
Current stock 9 U.
Factory lead time 5 Day(s)

Solution description

Remote control for AC fans with single-phase motor. The combined maximum motor current is 10 A. The motor speed can be adjusted via the digital potentiometer with display and key-button interface. Fan speed can be adjusted continuous variable or in 2-10 equal steps. The display shows the fan speed step (number) or the fan speed in percentage. It is advisable to keep the distance between potentiometer and fan speed controller limited.

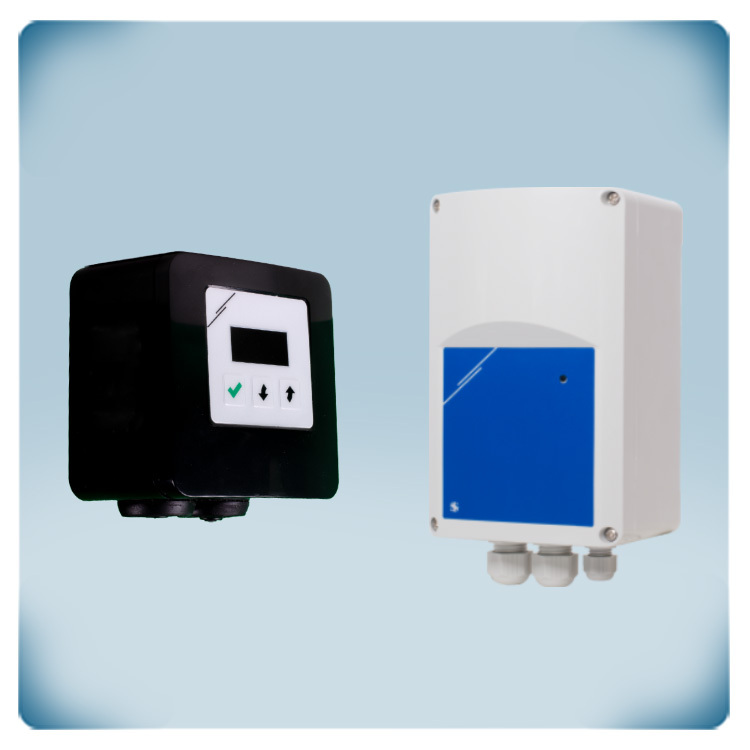

Components of this solution

Article code
Quantity
Description

EVS-1100-DM

1 U.

The EVS-1100-DM electronic speed controller is a sophisticated solution for automatic speed control of single-phase voltage-controllable motors (230 VAC / 50—60 Hz). Equipped with Modbus RTU communication, this unit offers remote control options, adjustable off level, and min. and max. output voltage settings. With a maximum current of 10 A, it provides time-limited motor operation initiated by logic or switch signals. The integrated ON-OFF switch and digital input enable versatile motor control. Precise adjustments are possible with internal trimmers and Modbus RTU, and the supply voltage is a reliable 230 VAC.

RDCV9-AD-BK

1 U.

The RDCV EC fan speed controller is a sophisticated digital potentiometer and HVAC controller designed for precision in ventilation control. Encased in a sleek anthracite housing with a contemporary style, this controller offers versatile functionality to meet your ventilation needs. The enclosure offers both surface and inset mounting options, ensuring compatibility with diverse ventilation setups. In manual mode, effortlessly fine-tune your system using the intuitive 3-button interface. The analogue output is a powerhouse, capable of controlling EC fans, AC fan speed controllers, frequency inverters, or damper actuators. Choose between a continuously variable output or segment it into 2-10 equal steps, with adjustable minimum and maximum values to tailor performance to your requirements. For a seamless automated experience, connect a Sentera HVAC sensor to activate automatic mode. Now, the analogue output responds dynamically to ambient temperature, relative humidity, CO2 concentration, air quality (TVOC concentration) or differential pressure. Modify setpoints and parameters easily through the 3-button interface or Modbus RTU communication. This advanced controller operates within a supply voltage range of 110 - 230 VAC, providing flexibility for various applications.
