AC motor 10 A | Remote control | TK monitoring | DIN rail

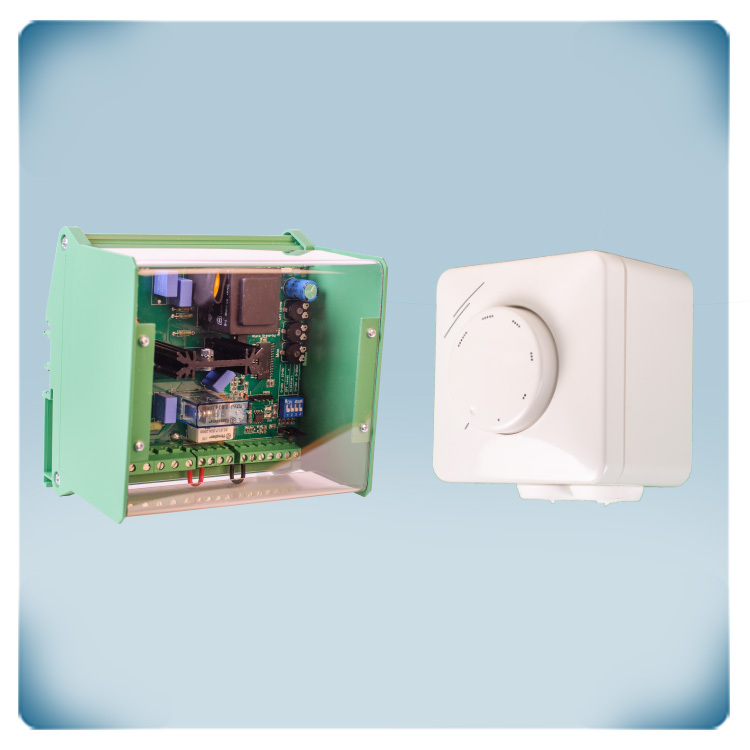

The MVSS1100CDM variable fan speed controller is a sophisticated solution for precise control of 230 V single-phase tension controllable motors with maximum currect of 10 A. It features Modbus RTU communication, alarm relay output, and thermal contacts for overheating protection. It also offers remote control options, adjustable levels, and time-limited motor operation. The TK monitoring function ensures motor deactivation in case of overheating. Versatile features, including kick start, soft start, and multiple operating modes, make it a reliable choice for expert motor speed control, easily DIN-rail mounted.

With this 10 KOhm potentiometer you can directly control EC fans. If you want to control the speed of an AC motor, connect this potentiometer to an Electronic Fan Speed Controller (EVS, MVS) or frequency converter (FI-E). This potentiometer has an adjustable resistance of 0-10 kΩ. The device does not require a specific power supply, but the input signal must be between 0 and 12 VDC. Most EC fans, electronic speed controllers or frequency converters have an output with the required voltage. Depending on the position of the dial, the feedback voltage varies, regulating the Fan Speed. The dry contact output can be used to remotely give a start-stop command to the fan or other equipment. The splash-proof housing allows recessed installation (IP44) or surface mounting (IP54).
