AC motor 10 A | fan speed control | day-night regime

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code S20------001

Current stock 1 U.

Factory lead time 4 Week(s)

Solution description

Day-night controller with calendar function for fans with single-phase motor, equipped with thermal contacts. The maximum motor current is 10 A. Typically, it regulates fan speed in HVAC applications. Two optimal motor speeds can be programmed. The integrated timer with day-week program can activate one of both preconfigured motor speeds. The TK monitoring function deactivates the motor in case of overheating. The fan will automatically restart after a power faillure. The supply voltage is 230 VAC. Only for voltage controllable motors.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

ST2R1100L25

1 U.

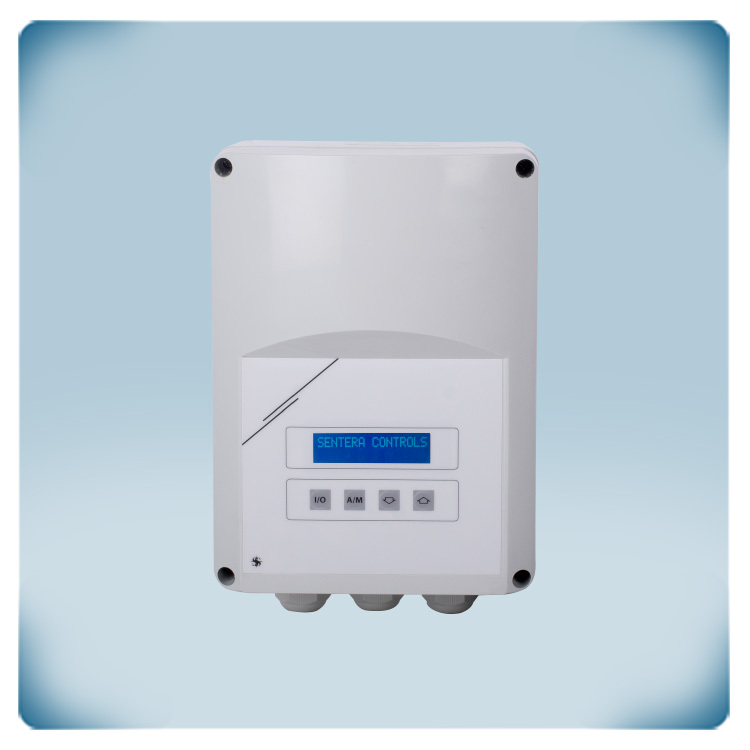

5-stage fan speed controller with integrated calendar function. It controls single-phase motors. The (combined) maximum current is 10 A. The speed of the AC fan is regulated by reducing the motor voltage using autotransformer technology. This technology produces a perfect sinusoidal motor voltage and ensures quiet motor operation. Two optimum motor speeds selectable. Day-week programmed timer allows switching. TK monitoring function stops the motor in case of overheating. Motor restarts automatically after power failure. The enclosure can be surface mounted indoors (IP54).
