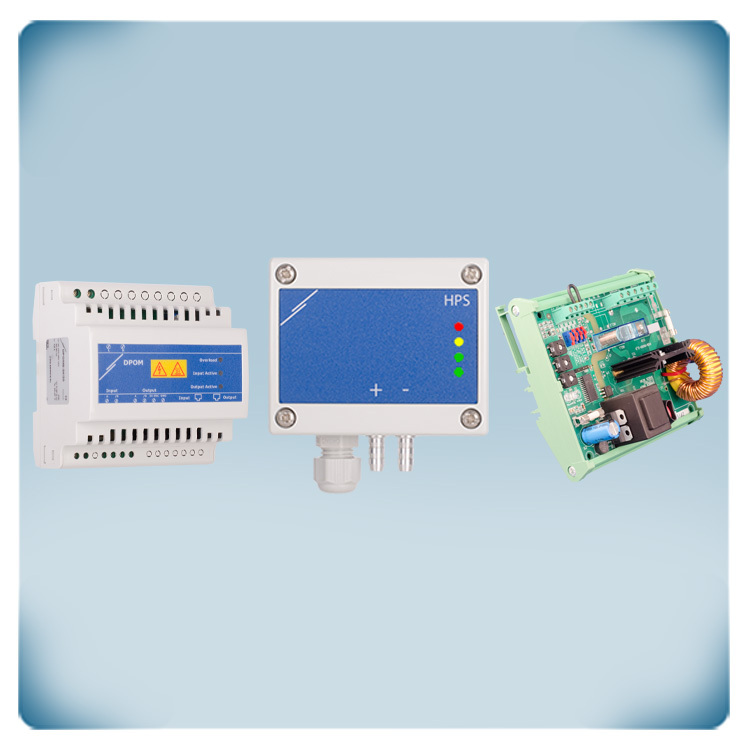

AC motor 10 A | Differential pressure control 0 - 1.000 Pa | DIN rail

This 24 VDC switch mode power supply is DIN rail mounted and features a built-in Modbus RTU repeater. It offers protection against short circuit, overload and overvoltage. The maximum load is 900 mA or 20 W. The 24 VDC supply is only available via the output channel. All devices can be connected via terminal blocks or via the RJ45 connectors. The Modbus RTU communication of both channels is reinforced by the built-in half-duplex line repeater. The supply voltage is in the range of 85 to 264 VAC (50-60 Hz). This device is mounted on a DIN rail. The enclosure offers an IP20 protection against ingress of dust.

Differential pressure controller for fans generating a Variable Air Volume flow (VAV control). The supply voltage is 24 VDC. The operating range is 0 to 1.000 Pa. It controls differential pressure or air volume flow. Air velocity control is also possible in combination with a Pitot tube connection set: PSET-PTS-200. . The analogue output can control EC fans, frequency inverters or AC fan speed controllers. The output type is selectable via Modbus RTU communication. The four LED indicators provide a visual indication of the transmitter status and the controlled values. The differential pressure setpoint and all other settings can be adjusted via Modbus RTU.

The advanced MVS-1100CDM speed controller is designed for precise control of 230 V single-phase motors. Its maximum rated current is 10 A. The controller is equipped with Modbus RTU communication, it offers remote control options, adjustable off level, and time-limited motor operation. With an invertible analogue input signal (0-10 VDC or 0-20 mA) and features like kick start, soft start, and multiple operating modes, the MVS series ensures reliable and expert motor speed control.
