TVOC controller | flush mounting | audible alarm, 24 VAC-VDC
Product description
HVAC transmitter with built-in buzzer. The supply voltage is 24 VAC or 24 VDC. It measures temperature, relative humidity, air quality (TVOC) and ambient light. In case the TVOC level enters the alert zone, the buzzer is activated to indicate that extra fresh air supply is required. The unique enclosure allows flush mounting or surface mounting. The sensor algorithm controls the single analogue output based on the measured values. This single output can be used to directly control an EC fan, an AC fan speed controller or a damper actuator. The output type can be selected. All measurements and the output value are available via Modbus RTU. The TVOC sensor element is replaceable. In many applications, the ambient light sensor can be used to control the ventilation system in function of the occupancy of the room. All settings can be adjusted via Modbus RTU. Also the light intensity of the LEDs for status indication is adjustable.
Additional specifications and description
Is there sufficient fresh air supply?
This TVOC sensor has a built-in buzzer. when the TVOC level enters the alert zone, the buzzer is activated to indicate that extra fresh air supply is required. The LED indicators offer a clear, visual indication of the TVOC level via the green, yellow and red LED. The green LED indicates that the TVOC level is within range - there is sufficient fresh air supply. When the TVOC level enters the alert range, the yellow LED lights up. Red means: TVOC out of range or insufficient fresh air supply. The measured temperature, relative humidity, TVOC, dew point and ambient light level are available via Modbus RTU.
How to control fresh air supply?
TVOC or Total Volatile Organic Compounds evaporate from substances such as cleaning products, adhesives, paints, etc. TVOCs are also emitted from humans and animals. That is why a TVOC sensor provides a good, overall image of air quality. TVOC sensors are the best choice to control a ventilation system in residential environments. The output of this sensor can control an EC fan, an AC fan speed controller or a damper actuator. The output value varies proportionally in function of the measured temperature, humidity and TVOC concentration. When more fresh air is required, the sensor will increase the fan speed or open the damper.
Easy to connect!

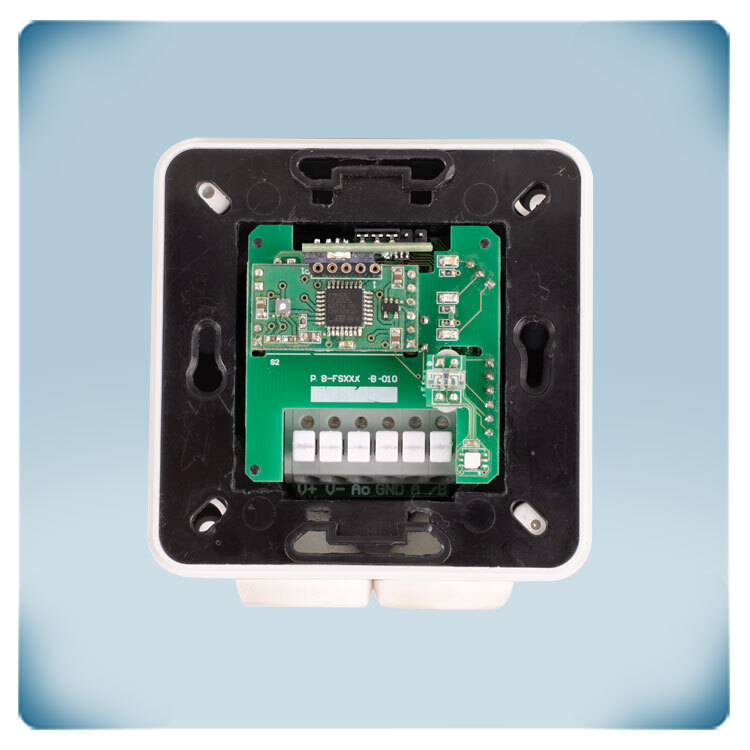

The cage clamp terminal blocks reduce wiring and installation time. They eliminate the need for routine maintenance and guarantee a reliable contact for solid or stranded wires. This sensor can be supplied with 24 VDC or with 24 VAC. It is intended for 3-wire connection. The ground of the output (GND) is internally connected to the ground of the supply voltage (V-). Make sure not to connect this common ground to other devices that are powered by a DC voltage.
Flush mounting
This sensor can be mounted on a wall, a flat surface or in a standard European wall mounting box. Only the front plate of the sensor is then visible on the wall - the sensor is flush mounted.
Flush mounting
This sensor can be mounted on a wall, a flat surface or in a standard European wall mounting box. Only the front plate of the sensor is then visible on the wall - the sensor is flush mounted.
This sensor doesn't require any configuration. Once installed, it is ready to use. The default settings will do for most applications. If necessary, the settings can be adjusted via Modbus RTU. For example, a different output type can be selected to make it compatible with other devices: 0-10 VDC / 0-20 mA / 0-100 % PWM / Modbus RTU. Also the light intensity of the LEDs for status indication is adjustable. The Modbus register map provides a complete overview of all adjustable settings.
The best quality and reliability
This HVAC sensor is manufactured in Europe. Each sensor is calibrated and tested in our factory. In the unlikely event of TVOC sensor element failure, this module can be replaced. We use sensor elements and components of high quality. This ensures the long-term stability and accuracy of this HVAC transmitter.
