Temperature humidity room sensor and switch
Product description
Temperature and relative humidity sensor with two analogue outputs and two relay outputs. The supply voltage is 24 VAC or 24 VDC. One of four pre-defined temperature and relative humidity ranges can be selected via two jumpers. Different analogue output types can be selected via a jumper. Temperature and relative humidity setpoints can be adjusted via a trimmer on the pcb.
Documents
Additional specifications and description
Analogue outputs
The two analogue outputs provide an indication of the measured temperature and relative humidity. The measurement ranges can be selected via two jumpers.
3-wire connection
This sensor can be supplied with 24 VDC or with 24 VAC. It is intended for 3-wire connection. The ground of the output (GND) is internally connected to the ground of the supply voltage (V-). Make sure not to connect this common ground to other devices that are powered by a DC voltage.
This sensor can be supplied with 24 VDC or with 24 VAC. It is intended for 3-wire connection. The ground of the output (GND) is internally connected to the ground of the supply voltage (V-). Make sure not to connect this common ground to other devices that are powered by a DC voltage.
Enclosure

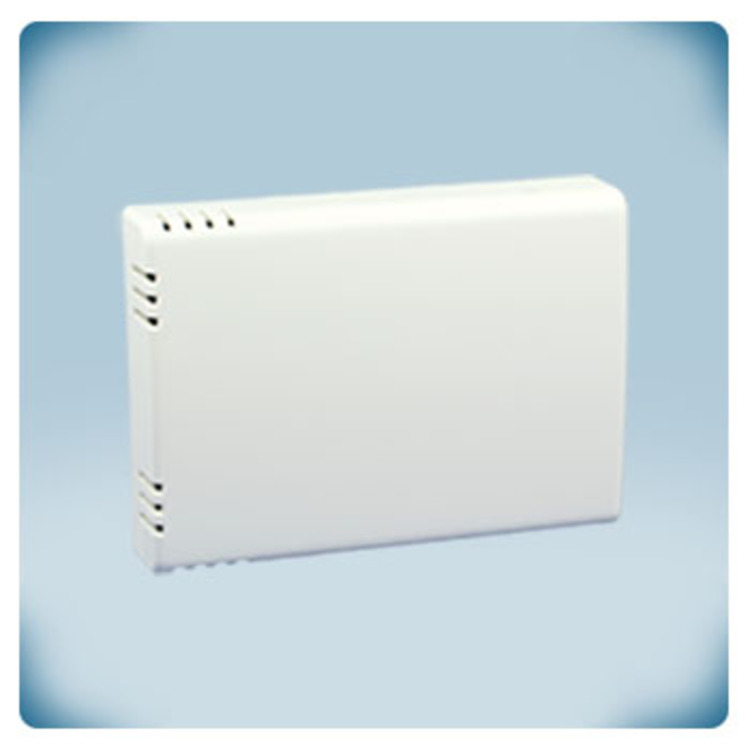

Sleek, contemporary design The enclosure offers a sleek, contemporary design. It has an IP30 protection degree against ingress of dust and moisture. It can be mounted on a wall indoors. To ensure optimal performance, it should be protected from direct sunlight.
