Room temperature sensor and switch
Product description
HVAC temperature sensor with analogue output and relay output. The supply voltage is 24 VAC or 24 VDC. One of four pre-defined temperature ranges can be selected via a jumper. Different analogue output types can be selected via a jumper.
Additional specifications and description
Analogue output
The analogue output gives an indication of the measured temperature.
3-wire connection
This sensor can be supplied with 24 VDC or with 24 VAC. It is intended for 3-wire connection. The ground of the output (GND) is internally connected to the ground of the supply voltage (V-). Make sure not to connect this common ground to other devices that are powered by a DC voltage.
This sensor can be supplied with 24 VDC or with 24 VAC. It is intended for 3-wire connection. The ground of the output (GND) is internally connected to the ground of the supply voltage (V-). Make sure not to connect this common ground to other devices that are powered by a DC voltage.
Enclosure

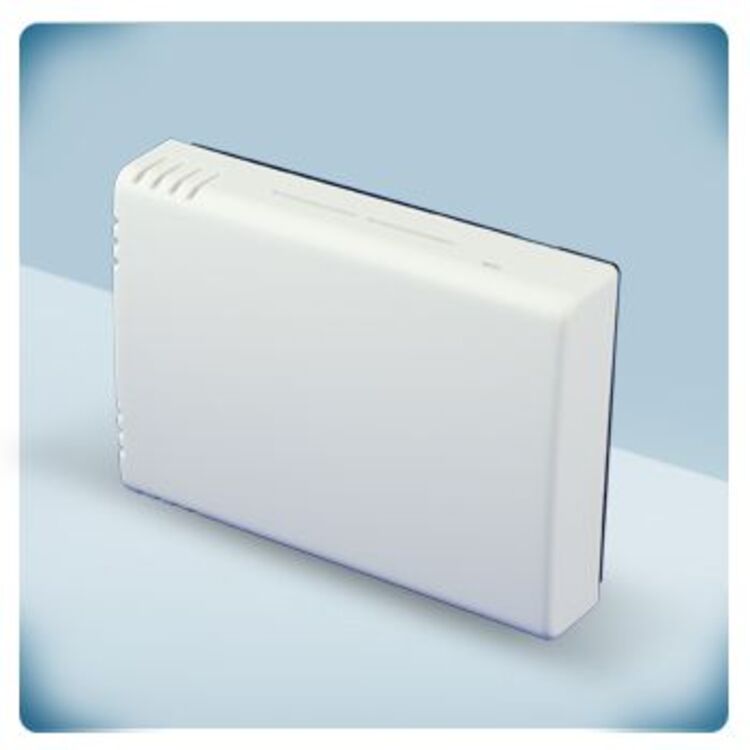

Sleek, contemporary design The enclosure offers a sleek, contemporary design. It has an IP30 protection degree against ingress of dust and moisture. It can be mounted on a wall indoors. To ensure optimal performance, it should be protected from direct sunlight.
