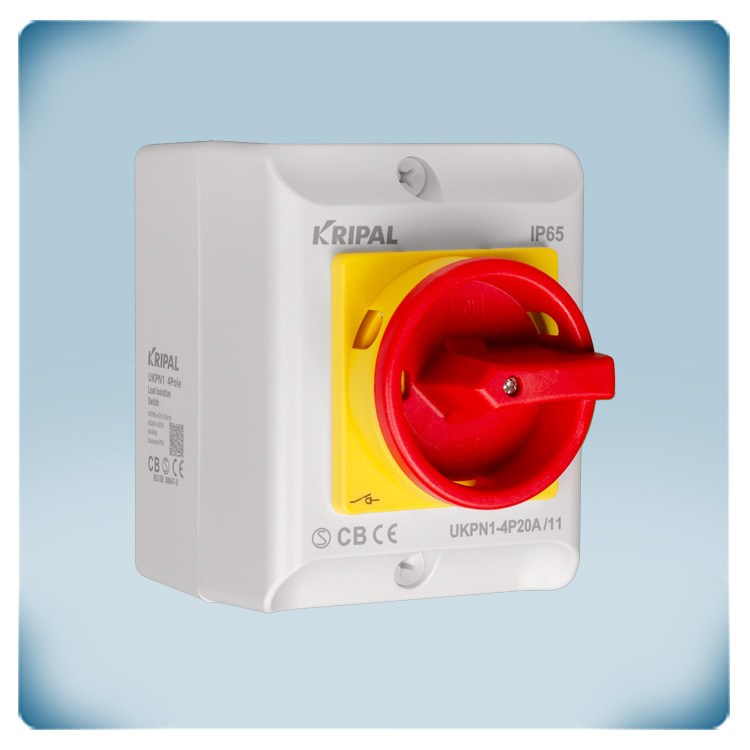

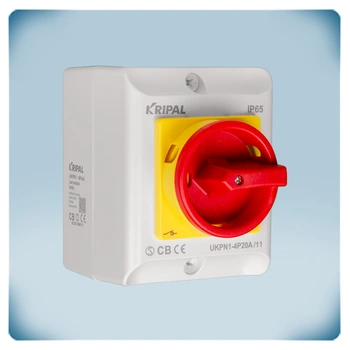

Mains switch | emergency-OFF switch | 5.5 kW | 4 poles
Product description

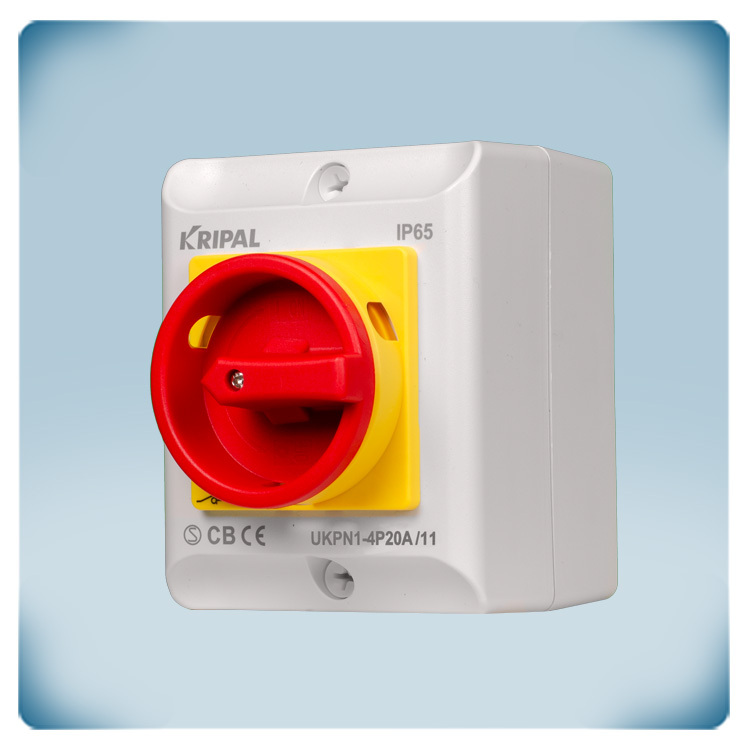

Mains isolating switch with padlockable OFF-position. During maintenance activities, it can be locked in OFF position to guarantee safe working conditions and to make sure that the motor cannot be started up accidentally.
The maximum load is 5.5 kW. The forced open contacts fulfil load break requirements up to 690 VAC. This means that even if the contacts are welded due to a short circuit, they are forced open to stop the power supply and create a safe situation. That's why they can be used as motor emergency-OFF switches. They can interrupt the motor power supply in all circumstances to create a safe situation.
The switchgear is housed in a moulded enclosure with an IP65 sealing. This switch has 4 poles, one normally open and one normally closed auxiliary contact.
Manufacturers code: Kripal UKPN1-4P20A/11
Additional specifications and description
A Mains Isolator Switch: What Is It?
Often called a mains switch or isolator switch, a mains isolator switch is a device intended to cut off an electrical circuit, machine, or piece of equipment's supply of power from the mains (or grid). Its main purpose is to swiftly isolate and disconnect power, offering a secure and effective way to terminate a particular electrical installation without interfering with other connected circuits.
Motor maintenance

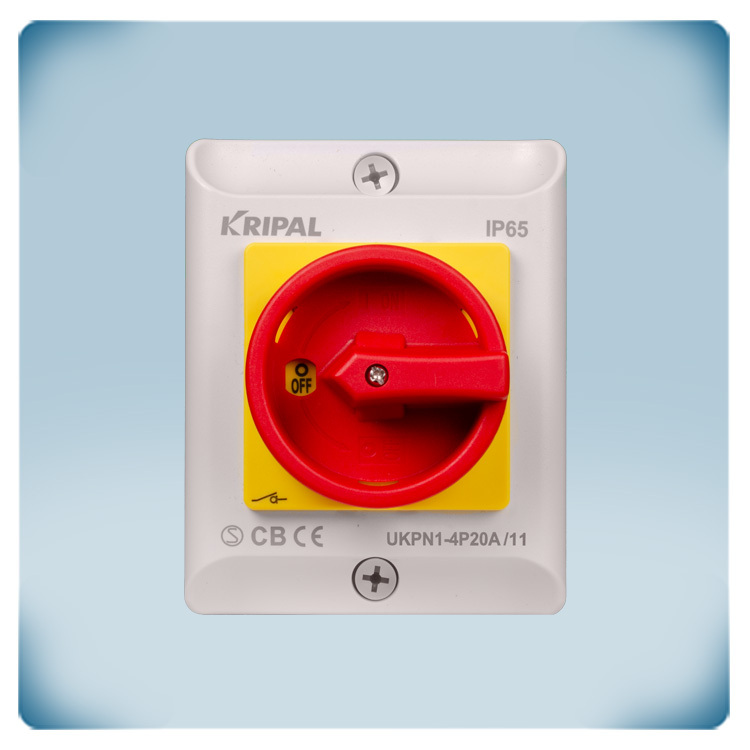

This red-on-yellow switch can interrupt the power supply of electric motors. In the OFF position (0), the electrical current is blocked. Thanks to the special openings, the switch can be locked in OFF position with an optional padlock. While the switch is locked in OFF position with a padlock, the motor cannot be enabled. This guarantees a safe working environment during motor maintenance activities. The technicians can work safely without having to worry that the installation will be switched on again at an unexpected time.
This red-on-yellow switch can interrupt the power supply of electric motors. In the OFF position (0), the electrical current is blocked. Thanks to the special openings, the switch can be locked in OFF position with an optional padlock. While the switch is locked in OFF position with a padlock, the motor cannot be enabled. This guarantees a safe working environment during motor maintenance activities. The technicians can work safely without having to worry that the installation will be switched on again at an unexpected time.
Motor emergency-stop
Emergency stop switches for electric motors must be reliable in all conditions to ensure safe operation. They must always be able to switch off the motor during an emergency or in hazardous situations. Even if the contacts are welded due to a short circuit, for example, the motor must be able to be switched off.
This switch features forced open contacts. This means that even if the contacts are welded due to a short circuit, they are mechanically forced open to stop the power supply and to create a safe situation. This makes them also suitable as motor emergency-OFF switches or as mains isolating switches for electrical loads.
Emergency stop switches for electric motors must be reliable in all conditions to ensure safe operation. They must always be able to switch off the motor during an emergency or in hazardous situations. Even if the contacts are welded due to a short circuit, for example, the motor must be able to be switched off.
This switch features forced open contacts. This means that even if the contacts are welded due to a short circuit, they are mechanically forced open to stop the power supply and to create a safe situation. This makes them also suitable as motor emergency-OFF switches or as mains isolating switches for electrical loads.
Solid enclosure
The high-quality plastic enclosure can be wall-mounted. It offers an IP65 protection against ingress of dirt and water. The four M20 or M25 knockouts simplify wiring. The red-on-yellow switch is clearly visible, which is important for an emergency-OFF switch.
The high-quality plastic enclosure can be wall-mounted. It offers an IP65 protection against ingress of dirt and water. The four M20 or M25 knockouts simplify wiring. The red-on-yellow switch is clearly visible, which is important for an emergency-OFF switch.
