HVAC Potentiometer | no OFF position | 3-15 VDC supply
Product description
Introducing the MTP-D010-BT, a reliable solution crafted for precision control within ventilation systems. This potentiometer is equipped with advanced features, offering control over EC fans, damper actuators, AC fan speed controllers, or frequency inverters, adapting effortlessly to various scenarios with a supply voltage range of 3 - 15 VDC.
Seize command through a continuous variable output signal, easily adjusted using the manual rotary knob. The MTP-D010-BT comes without an OFF-position. No need to worry about inadvertently turning off your system. Refine your system with precision trimmers, allowing adjustment of min (10-70%) and max (30-100%) output levels.
Designed for longevity, the MTP-D010-BT features a splash-proof enclosure suitable for either inset mounting (IP44) or surface mounting (IP54). This adaptability ensures consistent performance in diverse environments, instilling confidence in meeting your ventilation control requirements. Whether you prioritize efficiency, precision, or adaptability, the MTP-D010-AT emerges as the practical choice for managing ventilation systems. Enhance your control experience with a device that combines functionality and durability seamlessly, offering a dependable solution to meet your needs.
Additional specifications and description
What is the purpose of an HVAC potentiometer?
The control signal (potentiometer output) increases or decreases depending on the rotary knob position. This control signal can directly control EC fans or damper actuators. It can also remotely control AC fan speed controllers (such as Sentera’s EVS or MVS series) or frequency inverters (FI-E series). An illustrative example involves installing the potentiometer in a living room while the fan speed controller is positioned in a technical room or electrical cabinet. This setup enables convenient and effective control of the HVAC equipment.

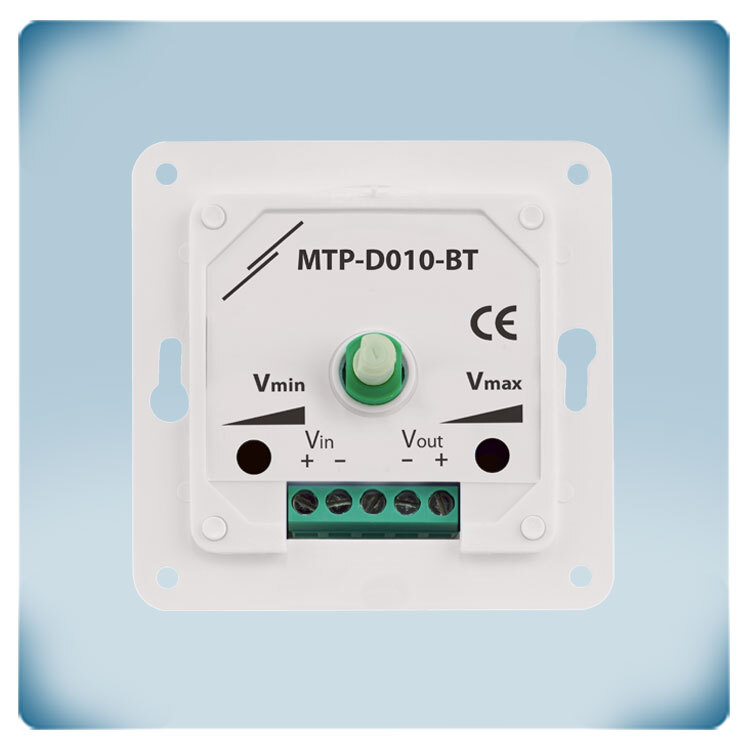

Adjustable minimum and maximum level
For some applications, it is desirable to adjust the low limit and the high limit of the control signal. This is particularly useful in scenarios where certain EC motors or damper actuators may not be compatible with excessively low control signals. To address this, the low limit of the control signal can be set via a built-in trimmer, allowing for optimal operation without compromising equipment integrity. Conversely, when dealing with overdimensioned fans, adjustments to the high limit of the control signal are necessary. This is done using a maximum trimmer, effectively limiting the maximum fan speed. By incorporating these adjustable limits, the system can be fine-tuned to match specific requirements, ensuring optimal performance and longevity of the HVAC equipment.
What are the limits of the control signal?
This depends on the MTP-D supply voltage. The supplied voltage must be in the range of 3 - 15 VDC. The minimum value can then be set between 10 and 70 % of the supplied voltage. The maximum value can be set between 30 and 100 % of the supplied voltage. Always ensure that the applied limits in combination with the supplied voltage result in an output signal that complies with the specifications of the connected device. This means that if the supplied voltage is 15 VDC and the high limit is set to 100 %, the connected device must be able to handle a control signal up to 15 VDC.
The control signal (potentiometer output) increases or decreases depending on the rotary knob position. This control signal can directly control EC fans or damper actuators. It can also remotely control AC fan speed controllers (such as Sentera’s EVS or MVS series) or frequency inverters (FI-E series). An illustrative example involves installing the potentiometer in a living room while the fan speed controller is positioned in a technical room or electrical cabinet. This setup enables convenient and effective control of the HVAC equipment.
Adjustable minimum and maximum level
For some applications, it is desirable to adjust the low limit and the high limit of the control signal. This is particularly useful in scenarios where certain EC motors or damper actuators may not be compatible with excessively low control signals. To address this, the low limit of the control signal can be set via a built-in trimmer, allowing for optimal operation without compromising equipment integrity. Conversely, when dealing with overdimensioned fans, adjustments to the high limit of the control signal are necessary. This is done using a maximum trimmer, effectively limiting the maximum fan speed. By incorporating these adjustable limits, the system can be fine-tuned to match specific requirements, ensuring optimal performance and longevity of the HVAC equipment.
What are the limits of the control signal?
This depends on the MTP-D supply voltage. The supplied voltage must be in the range of 3 - 15 VDC. The minimum value can then be set between 10 and 70 % of the supplied voltage. The maximum value can be set between 30 and 100 % of the supplied voltage. Always ensure that the applied limits in combination with the supplied voltage result in an output signal that complies with the specifications of the connected device. This means that if the supplied voltage is 15 VDC and the high limit is set to 100 %, the connected device must be able to handle a control signal up to 15 VDC.
Without OFF position
There may be certain conditions or legal requirements prescribing the a minimum air supply at all times and this potentiometer does not have an OFF position, the control signal will never reach 0 V. Even when the rotary knob is at minimum position (turned counter clockwise), the control signal will be at minimum value. This low level can be adjusted via the built-in trimmer.

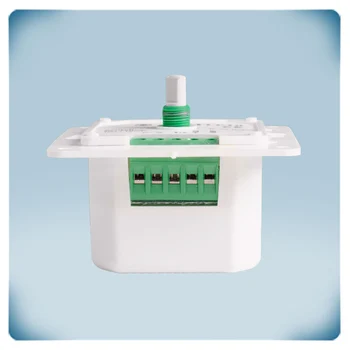

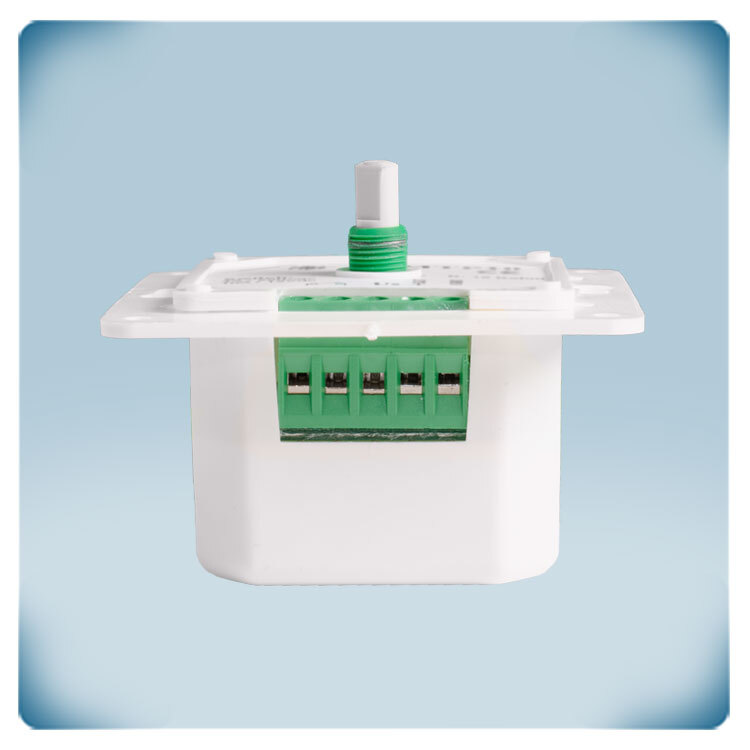

Wall-mounted or built-in

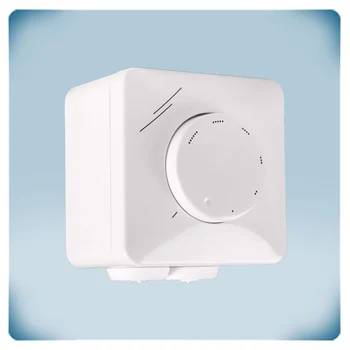

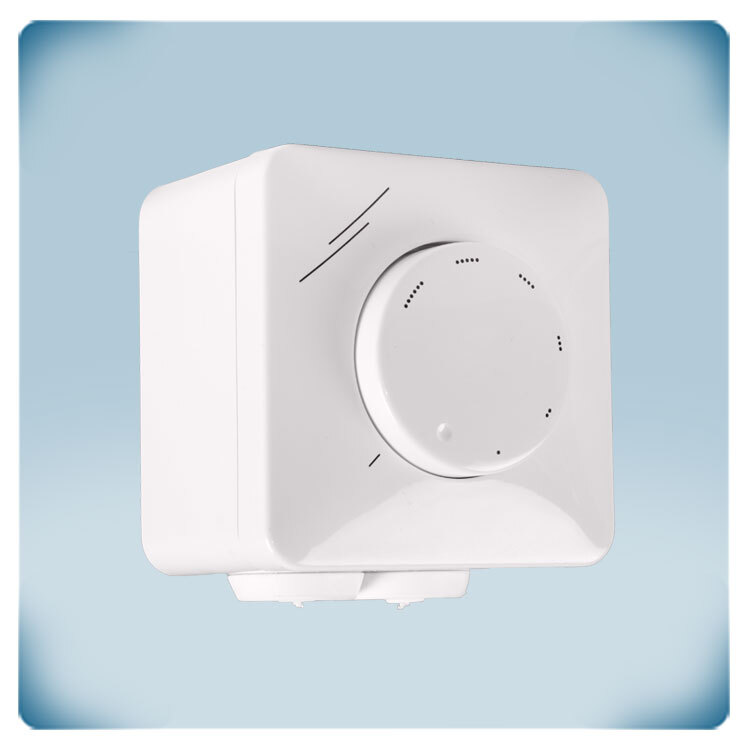

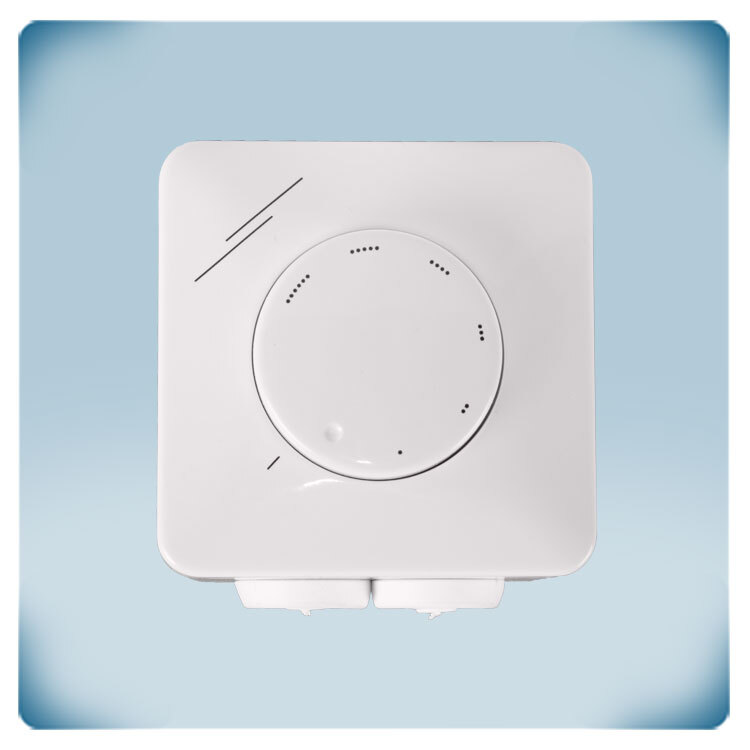

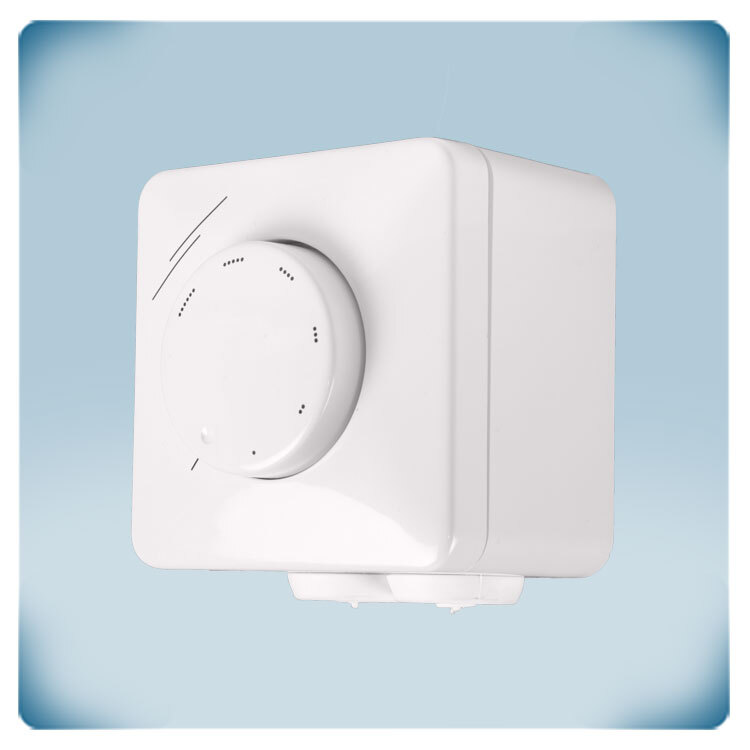

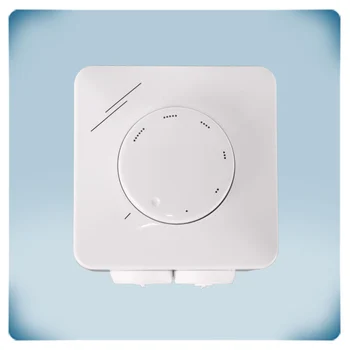

This potentiometer can be wall-mounted or built-in. Its mounting holes fit perfectly the standard European wall boxes. The enclosure is made of high-quality ASA plastic in nice cream colour (RAL9010). The material is UV resistant and protects against impacts. The protection class is IP44 when built-in and IP54 when wall-mounted. It protects the electronics against ingress of dust, dirt and water in indoor applications.
The enclosure is easy to clean with a damp cloth and mounting it is very easy - all you need is a couple of basic instruments and a little bit of handiness.
Wall-mounted or built-in
This potentiometer can be wall-mounted or built-in. Its mounting holes fit perfectly the standard European wall boxes. The enclosure is made of high-quality ASA plastic in nice cream colour (RAL9010). The material is UV resistant and protects against impacts. The protection class is IP44 when built-in and IP54 when wall-mounted. It protects the electronics against ingress of dust, dirt and water in indoor applications.
The enclosure is easy to clean with a damp cloth and mounting it is very easy - all you need is a couple of basic instruments and a little bit of handiness.
