Fan speed controller | run indicator | 0,5 A |From High to Low
Product description

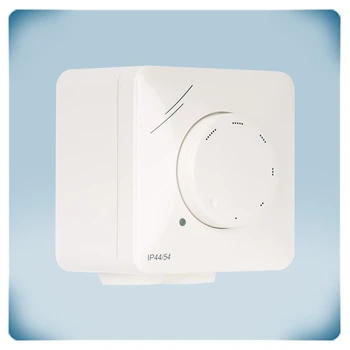

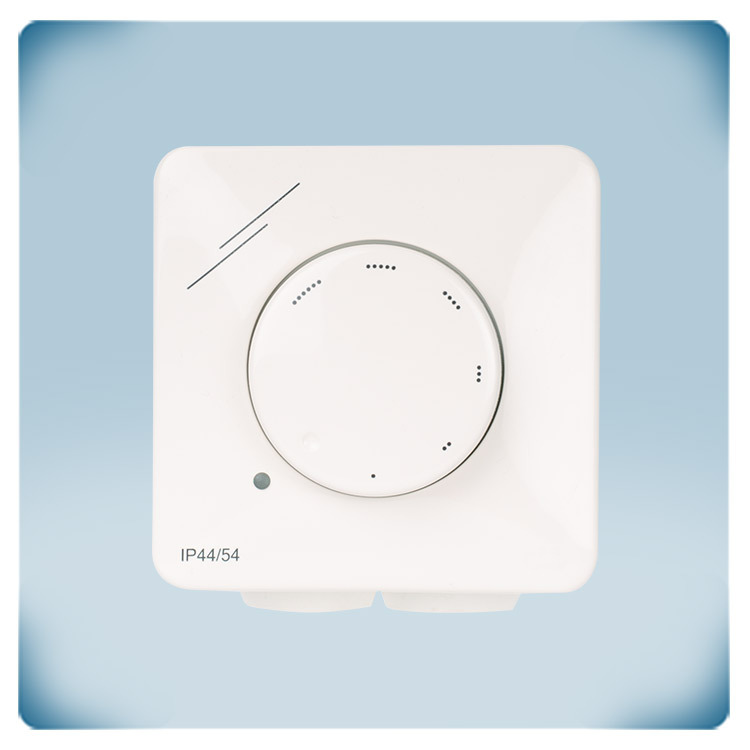

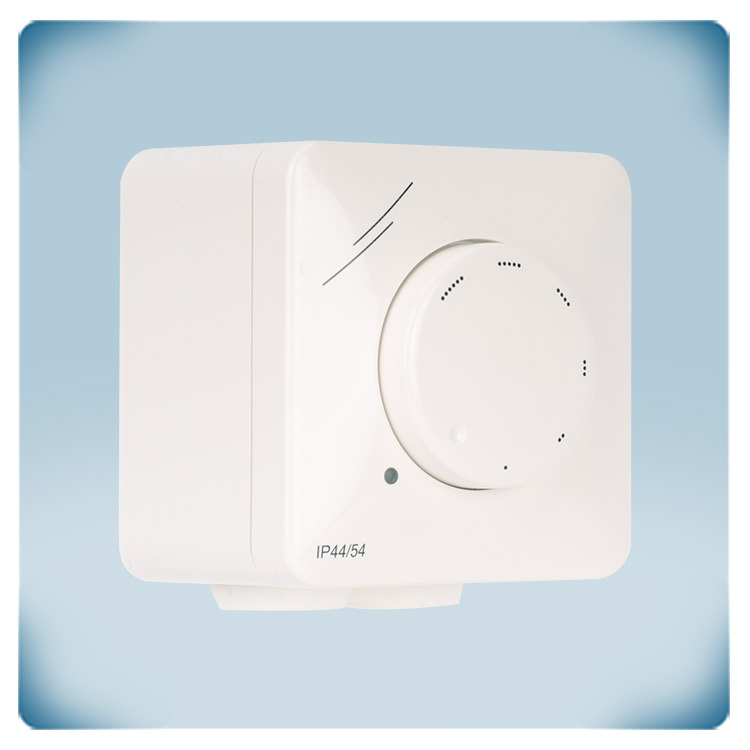

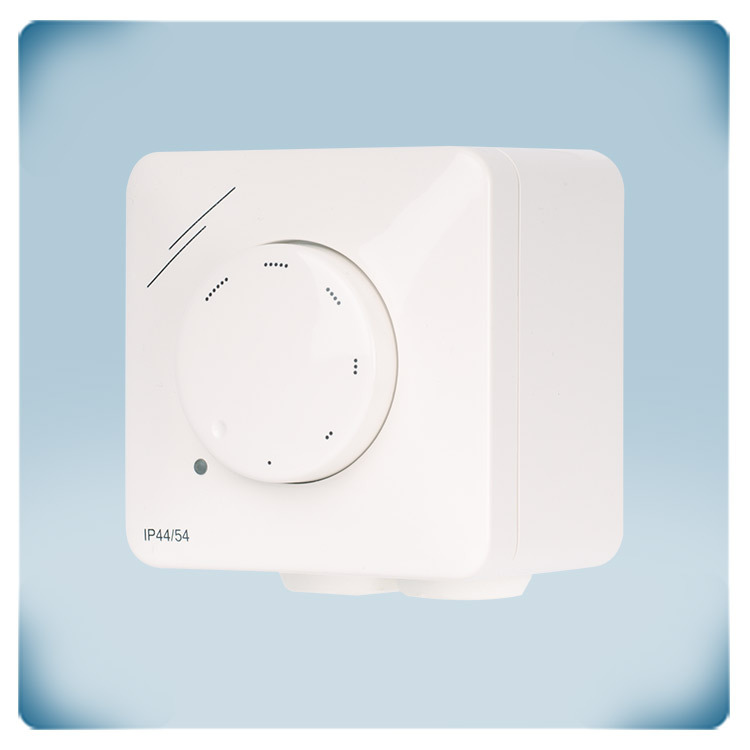

This is a variable speed controller with run indicator for single-phase motors. The maximum motor current is 0,5 A. It regulates AC fan speed manually from high to low. The fan speed can be set via the potentiometer. This potentiometer has an OFF-position (counter clockwise). The minimum speed can be adjusted via an internal trimmer. The enclosure allows inset mounting (IP44) or surface mounting (IP54). The orange operating LED indicator is integrated in the enclosure. The supply voltage is 230 VAC. Fan speed is regulated by reducing the motor voltage via phase angle control - TRIAC technology.
Additional specifications and description
About the series
Sentera’s LTX series are electronic fan speed controllers that are manually operated and represent a simplified ventilation control solution. Via a single button – the rotary knob - the fan speed can be set from maximum to minimum by turning the knob clockwise. Turning the knob anticlockwise stops the motor. The series is very similar to the MTX series, the only difference is the built-in LED operation indicator.
OFF position
The LTX features an OFF position, i.e. turning its knob anticlockwise stops the motor. However, if necessary, the OFF position can be deactivated. In this case, the motor can operate when the controller is connected to the mains, i.e. despite being switched off, if power supply is available, the fan will be working. As standard, the supply voltage to the LTX is connected via terminals ↑ and N. To disable the OFF position, you need to connect the supply voltage via the terminals intended for the unregulated output, namely ↓ and N.
Unregulated output
The series has an unregulated output which is active when the motor is enabled. It is called so because it is either ON (230 Volt) or OFF (0 Volt).
If the supply voltage is connected to ↑ and N, the unregulated output is active while the motor is running. The unregulated output is used for connecting a lamp, valve, etc. or three-wire motor connection. This means it is intended for control of external devices that can work without the need to regulate the incoming voltage. In other words, the LTX regulates the fan through the regulated output via controlling the voltage with the option to regulate one more device. In the second case though the voltage is not regulated i.e. it is either 0 V or 230 V.
If you connect the supply voltage to the device as standard, the unregulated output of your controller will be active when the motor is enabled. This means that when the fan stops, the connected external device will be disabled – the valve will be closed or the lamp will switch off. While the fan is working, the valve will remain open and the lamp will be switched on. The maximum current of the unregulated output is 2 A.
Minimum speed trimmer
The LTX features an internal trimmer for adjusting the minimum fan speed. It is normal for the motor to produce a little more noise at lower speeds. That is why the minimum motor voltage can be adjusted in order to prevent the motor from stopping due to mains voltage variations. The trimmer can set the minimum motor voltage with the range 20—70% of the supply voltage (i.e. approximately 80—180 VAC).
Orange LED operating indicator
The orange LED indicates the operation status. During normal motor operation, the orange LED is solid on.
Built-in or wall-mounted

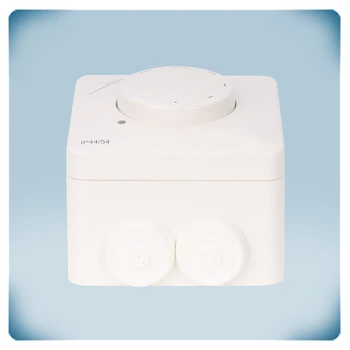

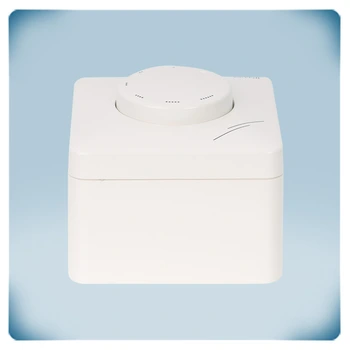

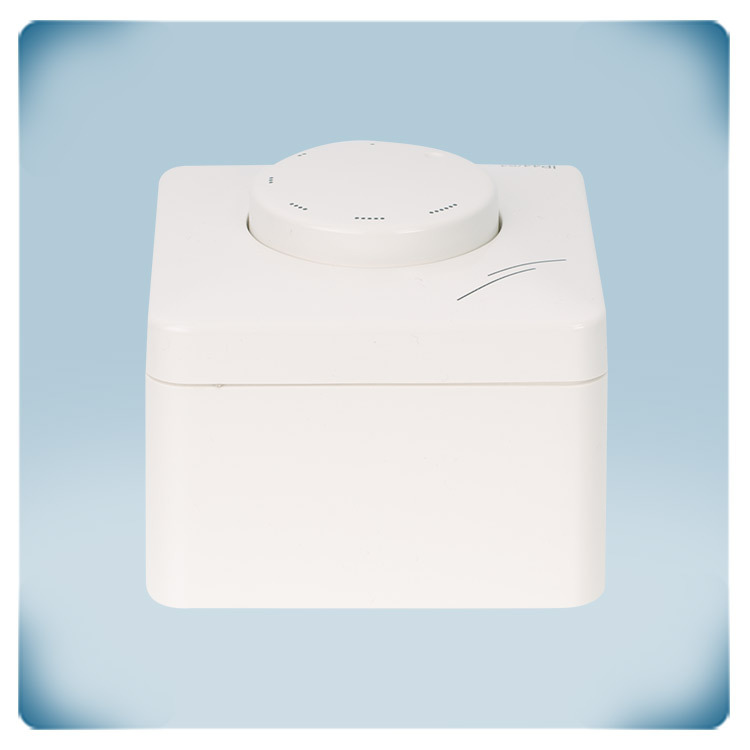

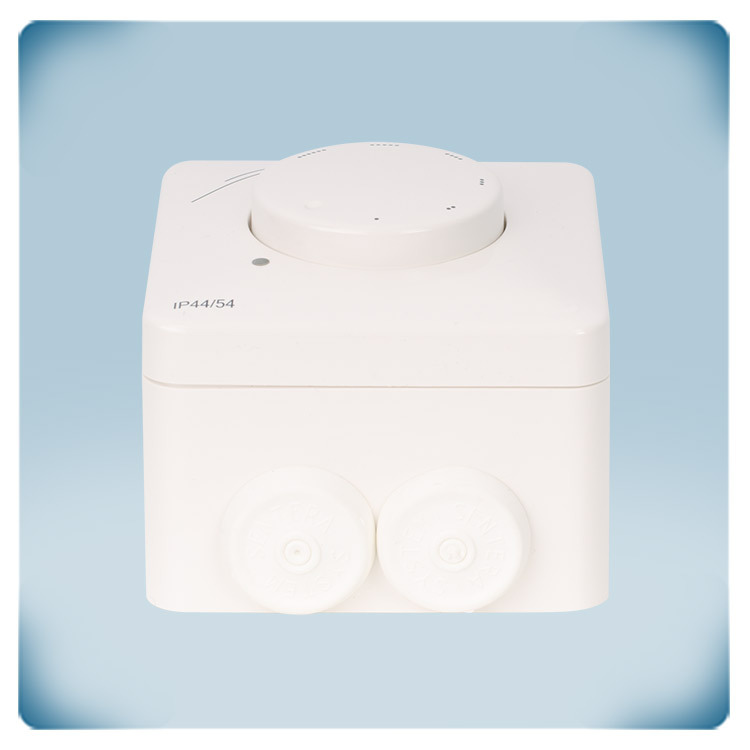

The enclosure of the LTX is made of durable ASA plastic in a nice cream colour (RAL9010). The material is UV resistant and provides protection against dust, water splashes and impacts. What is more, the LTX can be installed in any kind of walls since it features both built-in and wall mounting. If you choose to build it in the wall, it fits perfectly the standard European box. You can clean it using only a damp cloth.
Sentera’s LTX series are electronic fan speed controllers that are manually operated and represent a simplified ventilation control solution. Via a single button – the rotary knob - the fan speed can be set from maximum to minimum by turning the knob clockwise. Turning the knob anticlockwise stops the motor. The series is very similar to the MTX series, the only difference is the built-in LED operation indicator.
OFF position
The LTX features an OFF position, i.e. turning its knob anticlockwise stops the motor. However, if necessary, the OFF position can be deactivated. In this case, the motor can operate when the controller is connected to the mains, i.e. despite being switched off, if power supply is available, the fan will be working. As standard, the supply voltage to the LTX is connected via terminals ↑ and N. To disable the OFF position, you need to connect the supply voltage via the terminals intended for the unregulated output, namely ↓ and N.
Unregulated output
The series has an unregulated output which is active when the motor is enabled. It is called so because it is either ON (230 Volt) or OFF (0 Volt).
If the supply voltage is connected to ↑ and N, the unregulated output is active while the motor is running. The unregulated output is used for connecting a lamp, valve, etc. or three-wire motor connection. This means it is intended for control of external devices that can work without the need to regulate the incoming voltage. In other words, the LTX regulates the fan through the regulated output via controlling the voltage with the option to regulate one more device. In the second case though the voltage is not regulated i.e. it is either 0 V or 230 V.
If you connect the supply voltage to the device as standard, the unregulated output of your controller will be active when the motor is enabled. This means that when the fan stops, the connected external device will be disabled – the valve will be closed or the lamp will switch off. While the fan is working, the valve will remain open and the lamp will be switched on. The maximum current of the unregulated output is 2 A.
Minimum speed trimmer
The LTX features an internal trimmer for adjusting the minimum fan speed. It is normal for the motor to produce a little more noise at lower speeds. That is why the minimum motor voltage can be adjusted in order to prevent the motor from stopping due to mains voltage variations. The trimmer can set the minimum motor voltage with the range 20—70% of the supply voltage (i.e. approximately 80—180 VAC).
Orange LED operating indicator
The orange LED indicates the operation status. During normal motor operation, the orange LED is solid on.
Built-in or wall-mounted
The enclosure of the LTX is made of durable ASA plastic in a nice cream colour (RAL9010). The material is UV resistant and provides protection against dust, water splashes and impacts. What is more, the LTX can be installed in any kind of walls since it features both built-in and wall mounting. If you choose to build it in the wall, it fits perfectly the standard European box. You can clean it using only a damp cloth.
