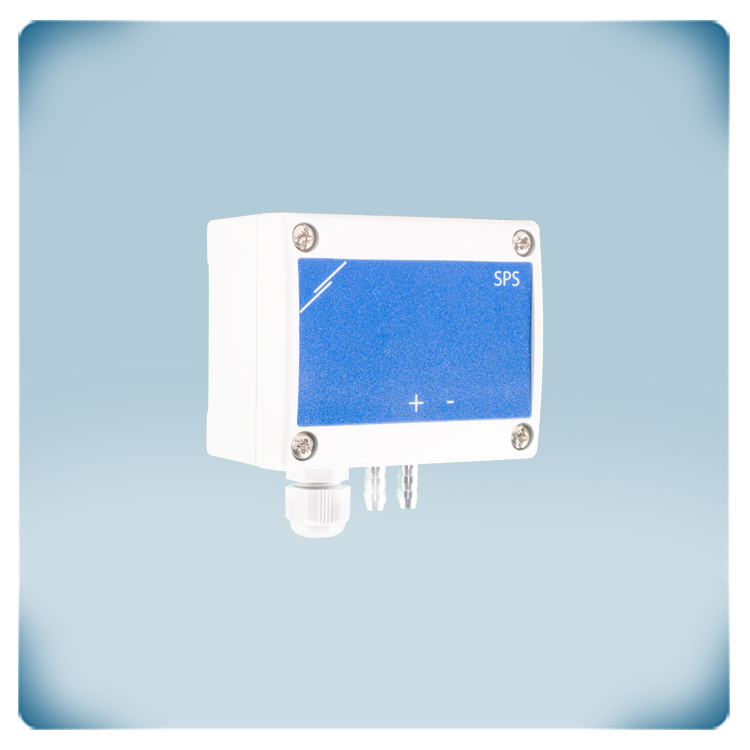

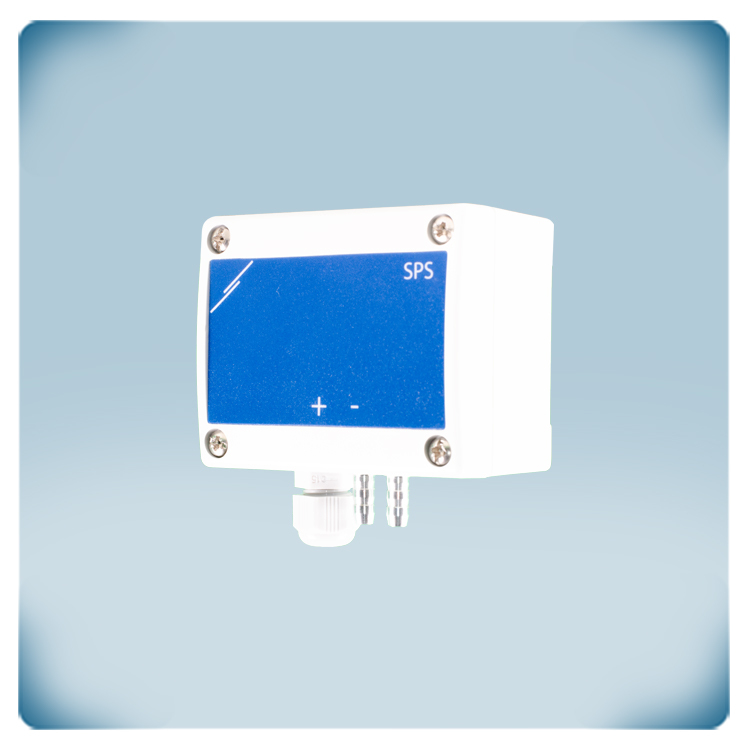

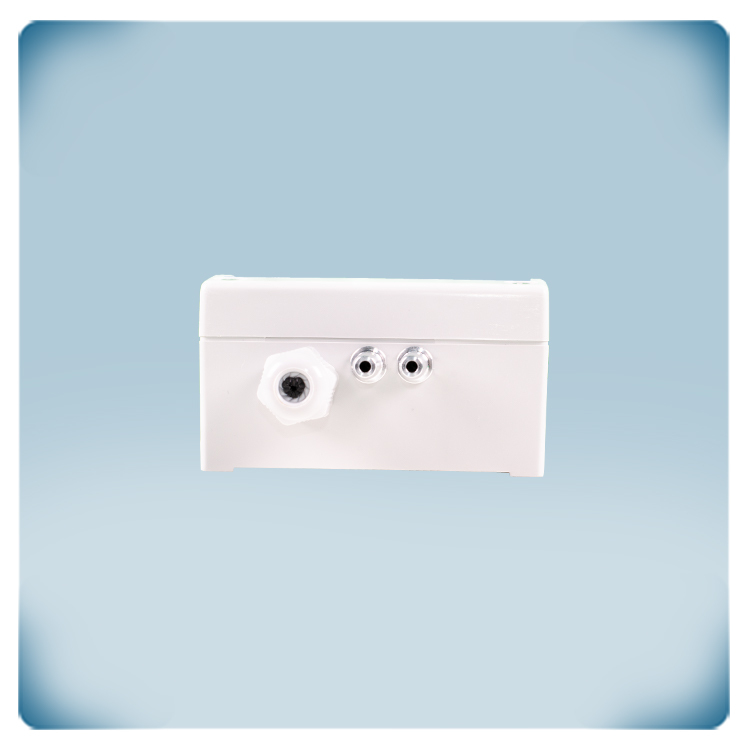

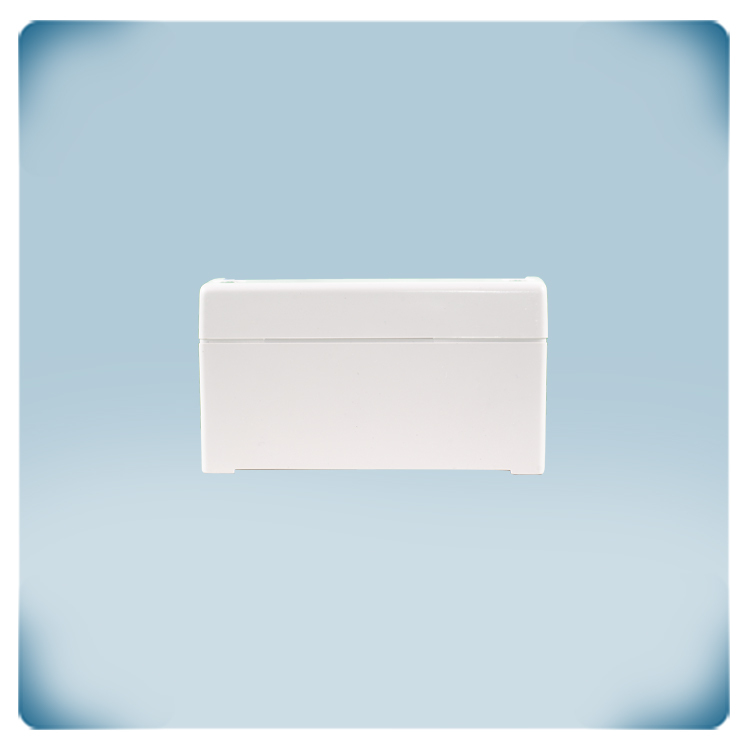

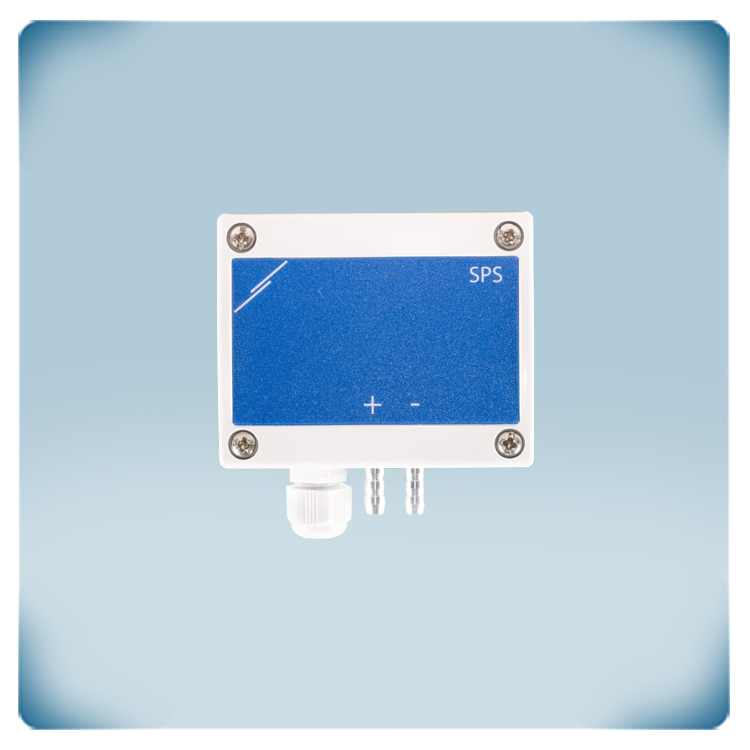

Damper actuator controller, differential pressure 0–2000 Pa

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!
Article code SPSAF-2K0
GTIN 0.540.100.301.481.3
Intrastat number 90.32.89.00
Category End of life approaching
Current stock 0 U.
Factory lead time 4 Week(s)

Product description

SPSA-series are controllers for actuator powered dampers. They control the damper position in function of differential pressure (Pa) or volume flow (m³/hr). Their control algorithm with PI function will continuously optimise the damper position to maintain the differential pressure or airflow constant. The setpoint and all other parameters can be adjusted via Modbus RTU. Their control output provides an analogue or modulating control signal: 0-10 VDC, 0-20 mA or 0-100 % PWM. Supply voltage: 18-34 VDC. It can be used in the range of 0 to 2.000 Pa.

Additional specifications and description

Once sold out, this article will be no longer available.
Best alternative: HPSAF-2K0-0 -2
