Controller for EBM-Papst FFUs | Modbus DCI
Product description

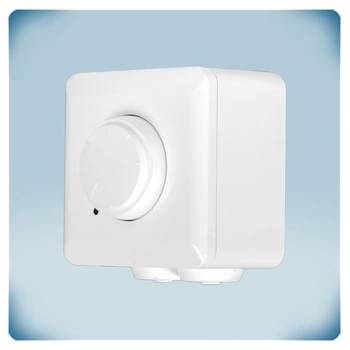

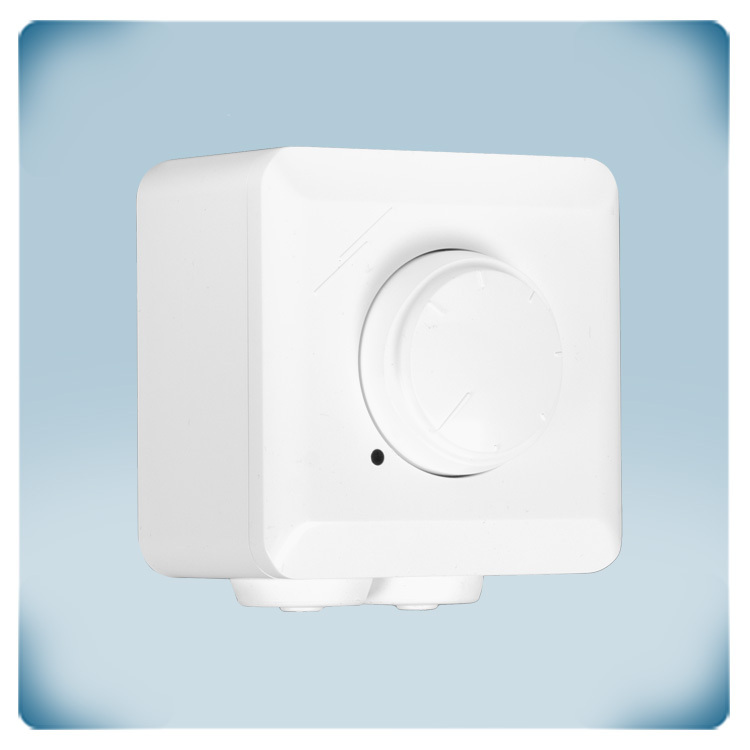

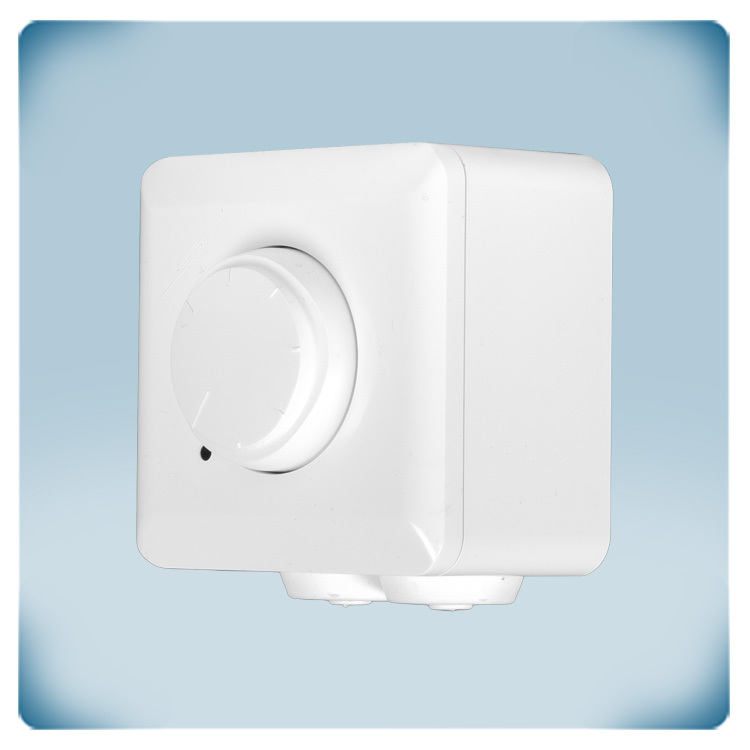

Meet the SPVL8-010-EP Filter-Fan-Unit (FFU) controller – a manual operator-controlled solution designed to optimise the performance of EBM-Papst K3G-series FFUs. Its primary function is offering hands-on control for achieving the desired air exchange rate.
Equipped with Modbus DCI (Digital Communications Interface), the SPVL8-010-EP establishes a robust communication interface based on the widely adopted Modbus protocol in industrial automation and control systems. This feature allows seamless integration and communication with other devices and systems within the industrial environment. When connected to Modbus, the controller not only ensures enhanced communication capabilities but also opens up a spectrum of advanced control options, providing precise management of FFU speed.
In the realm of technical specifications, the SPVL8-010-EP acts as a speed controller and monitoring device for Modbus RTU fans with DCI interface. It offers automatic fan configuration, streamlining the commissioning process for faster setup. Control flexibility is paramount, allowing you to choose between low to high or high to low speed, easily adjusted via Modbus RTU holding registers.

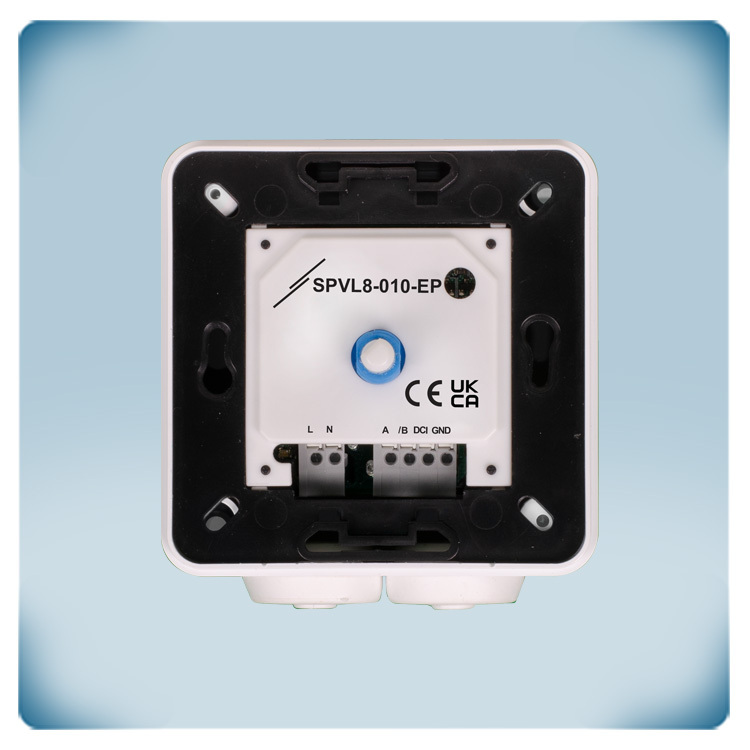

Fan status monitoring becomes intuitive through the RGB LED display and Modbus input registers. Advanced features include bootloader for firmware updates via Modbus RTU, and adjustable output values via Modbus RTU holding registers. The installation environment is flexible with the option of flush or surface mounting, and a push-in terminal block adds to the overall convenience.
In summary, the SPVL8-010-EP FFU controller is your precision tool for optimising FFU performance for the EBM-Papst FFUs wit Modbus/DCI interface. From hands-on operator control to advanced Modbus communication, this controller ensures peak efficiency in your ventilation system. Elevate your experience with the SPVL8-010-EP – where control meets precision.
Additional specifications and description
General information on FFUs

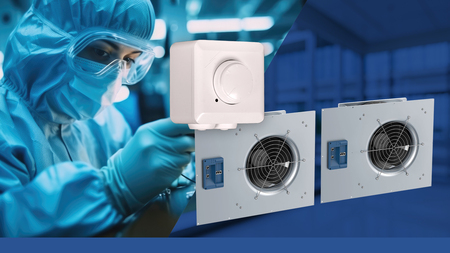

Cleanrooms have unique requirements for maintaining a controlled environment with ultra-clean air. Filter-fan-units (FFUs) play a crucial role in achieving and maintaining the necessary conditions. The use of EC centrifugal fans with auto-addressing, as offered by ebm-papst, can greatly enhance the efficiency and effectiveness of cleanroom ventilation systems.
Why opt for SPVL8-010-EP?
The SPVL8-010-EP Filter-Fan-Unit (FFU) controller is a component used to manage and control the operation of EBM-Papst K3G-series FFUs. The primary function of every FFUs controller is to ensure that the FFUs operate according to the specific requirements of the cleanroom, maintaining the desired parameters. The SPVL8-010-EP controller is operated manually, providing a hands-on, operator-controlled approach. This control can be essential for achieving the desired air exchange rate or pressure differential within the cleanroom.
The SPVL8-010-EP FFU controller features Modbus DCI (Digital Communications Interface) and is designed to provide a communication interface based on the Modbus protocol, which is a widely used communication protocol in industrial automation and control systems. When an FFU controller is equipped with Modbus DCI, it allows for seamless integration and communication with other devices and systems within an industrial or cleanroom environment. What is more, if connected to Modbus, the controller provides enhanced control options.
Special features
1 controller for 20 fans: The SPVL8-010-EP is designed to configure, control and monitor the state of up to 20 fans. This can potentially be extended if needed, allowing for a scalable fan control solution.

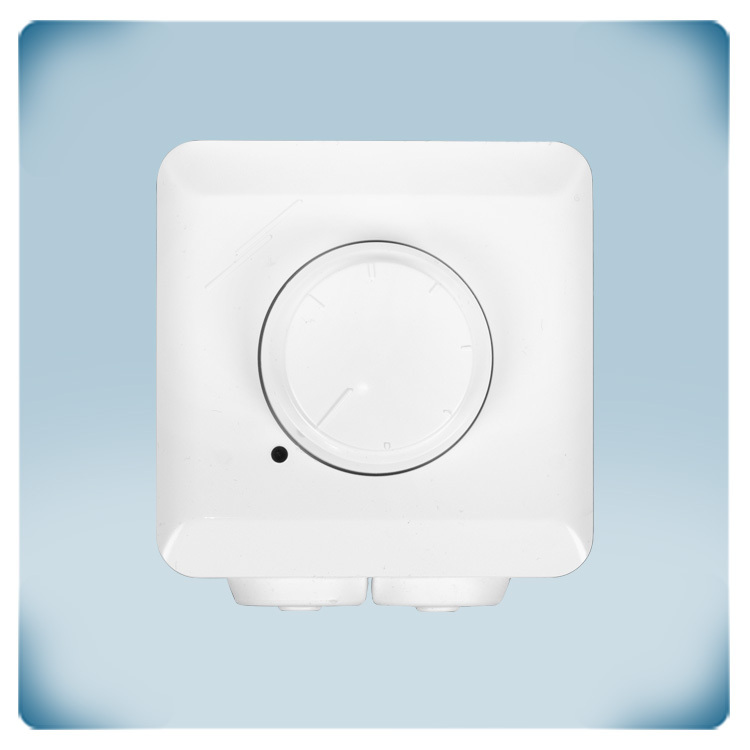

Digital output signal: The controller provides a linear digital output signal that corresponds to the potentiometer's position. This allows for precise control and monitoring of fan settings.
Automatic assignment: When initially turned on, the controller automatically configures each fan and assigns a unique slave ID to them. This simplifies the setup process and ensures that all fans run at the same speed.
Modbus RTU communication: The minimum and maximum output values of the controller can be adjusted via Modbus RTU communication. This means that you can customize the behaviour of the device to suit your specific requirements. Only if this special feature is used, you can make use of all available control features.
Switch for On/Off control: The switch integrated in the controller is used to turn on/off the device.
RGB LED indication: The SPVL8-010-EP has an integrated RGB LED indication for monitoring the fan status. This visual feedback is valuable for tracking the status of the fans at a glance.
Sentera's two-in-one enclosure

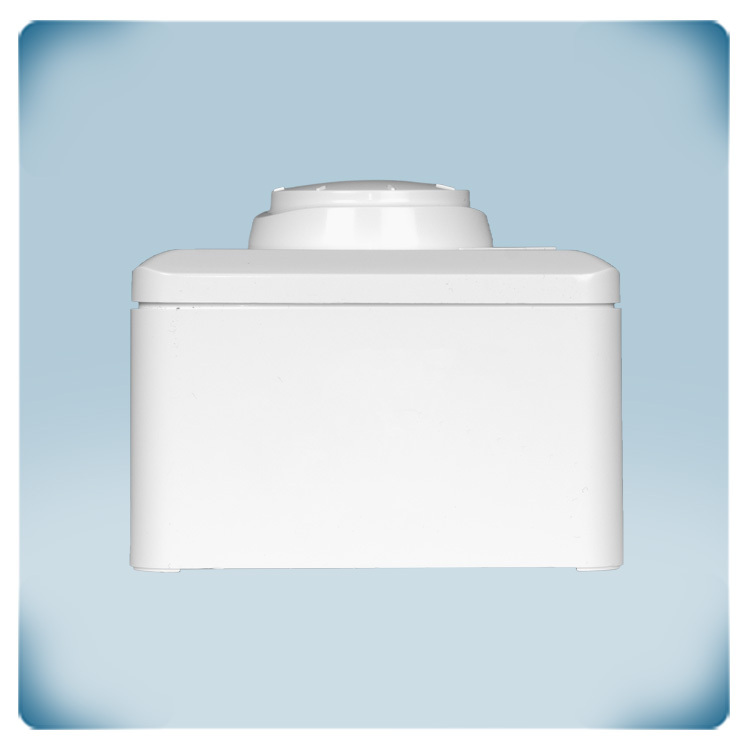

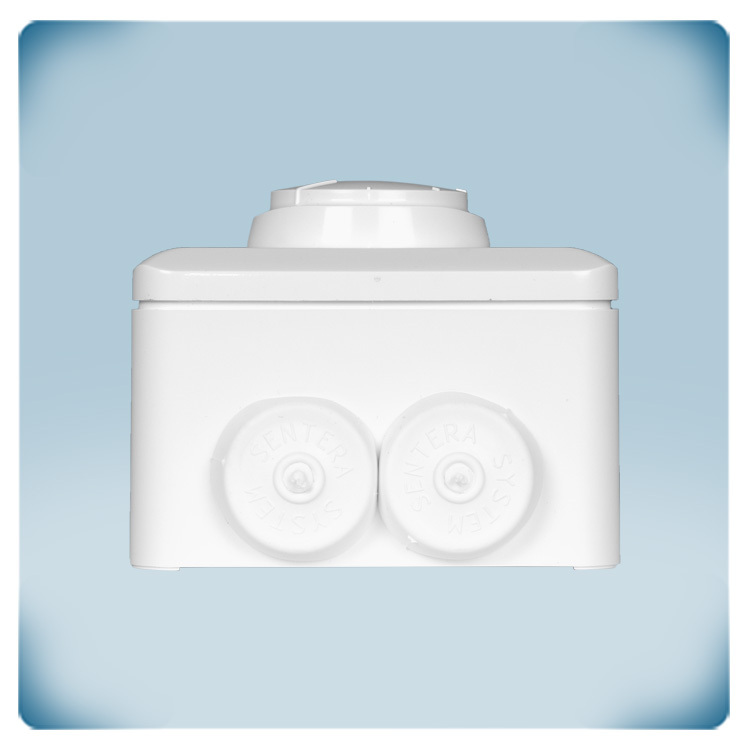

Enclosures play an important role in protecting the devices, therefore, to guarantee their quality, we produce them in our own factory. Thanks to the special design of its enclosure, this fan speed controller can be wall-mounted or built-in, which means it is suitable for all kinds of walls – from wooden panels through solid brick to gypsum board. Should you use a European wall box, the mounting holes of the SPVL8-010-EP fit perfectly. The enclosure is made of high-quality ASA plastic - a material that is UV resistant and protects against impacts. The protection class is IP44 for inset mounting and IP54 for surface mounting. The electronics is well-protected against ingress of dust, dirt and water from any angle in indoor applications. On top of that you can easily clean it with a damp towel.
