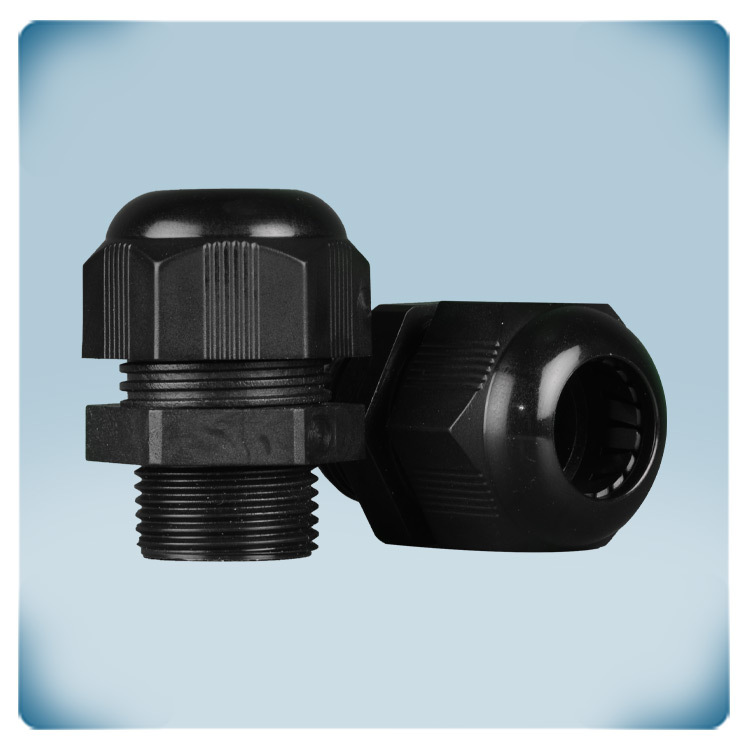

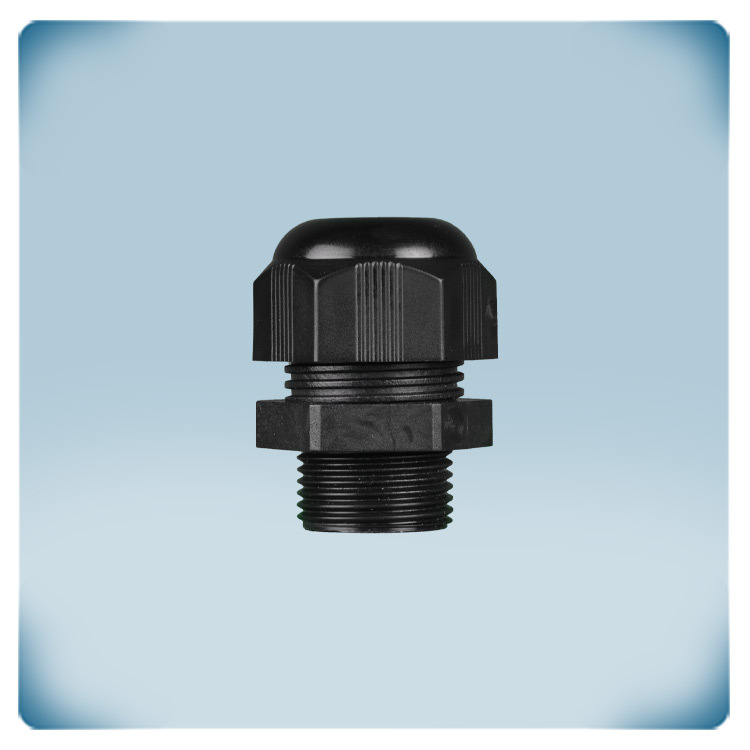

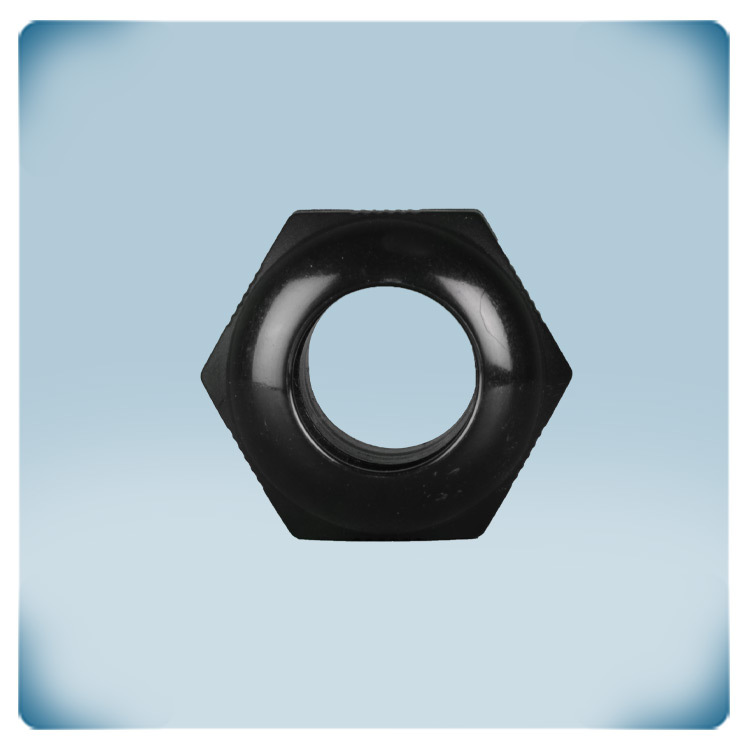

Cable gland M20 - Anthracite

Product description

CG series are general-purpose cable glands intended as a sealing device for electrical cables passing through an enclosure or panel. The cable gland ensures that the characteristics of the enclosure in which the cable enters can be maintained adequately. CG series can be used to maintain a maximum ingress protection of IP67.
CG-BK-M20 is manufactured in un-reinforced Polyamide 6.0 with anthracite colour (RAL9005). For optimal cable sealing, a TPV rubber ring is inserted. It features a thread of M20 x 1,5 and a clamping range of 8 - 13 mm. The cable gland nuts (CN-series) must be ordered separately.
