Autotransformer -L10 | 230 VAC | 7,5 A

Name: Autotransformer -L10 | 230 VAC | 7,5 A
Brand: Sentera
SKU: W-STC-1-75L10
Price: 72.2 Eur
Availability: OutOfStock

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code W-STC-1-75L10

Intrastat number 85.04.32.00

Category 230 VAC Autotransformers

Current stock 0 U.

Factory lead time 5 Day(s)

Product description

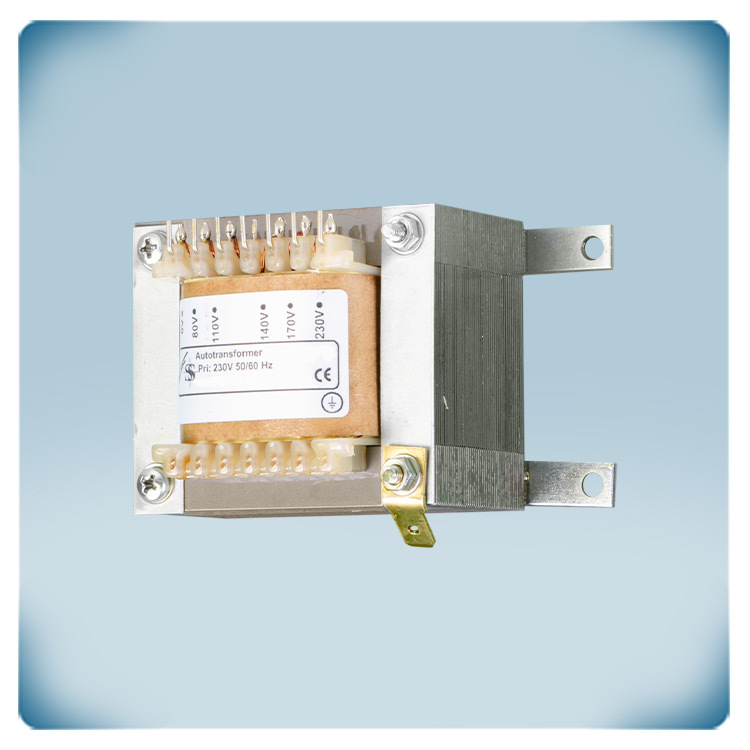

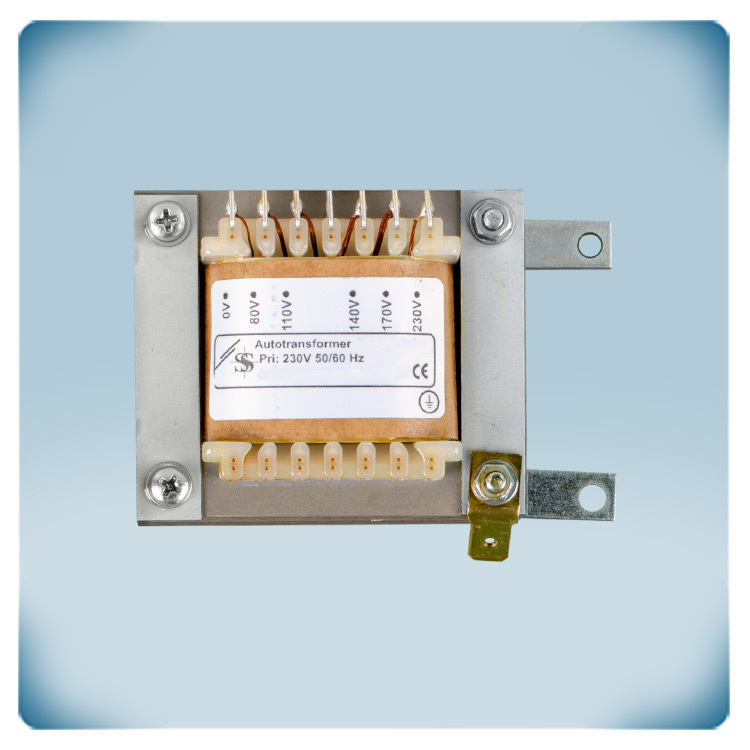

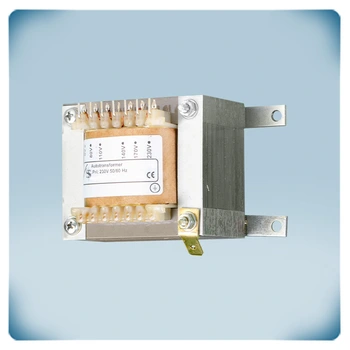

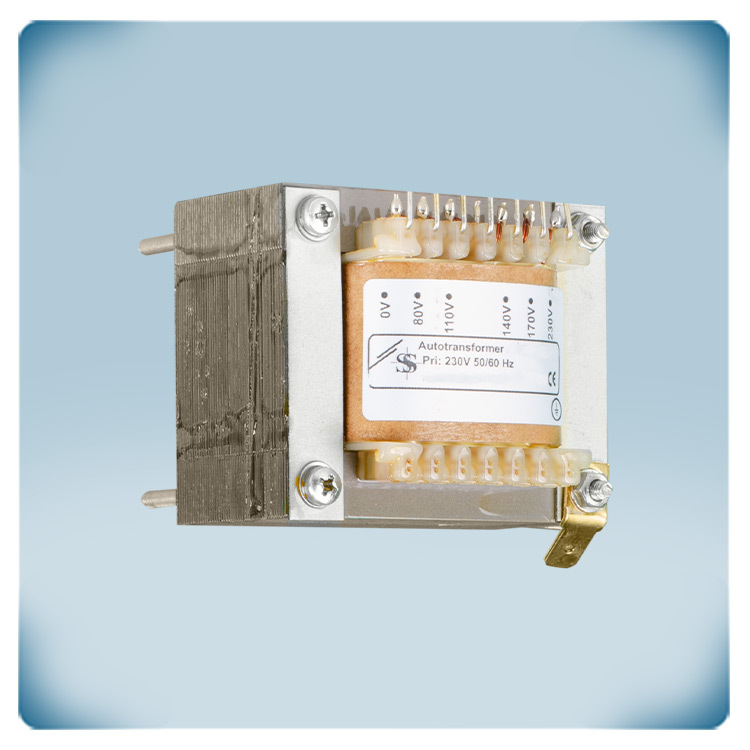

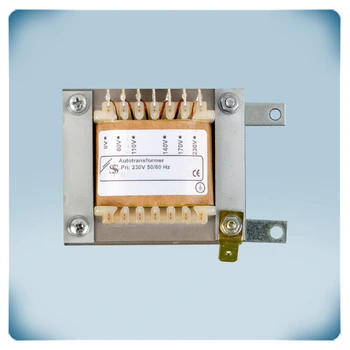

230 V autotransformer have following voltage taps: 0-80-110-140-170-230 VAC. The maximum current is 7,5 A. It can be used as a spare part for some types of Sentera transformer fan speed controllers.

Additional specifications and description

Spare part for AC fan speed controllers
Autotransformers are electrical transformers with one coil and different voltage taps. Via these different voltage taps, the different reduced voltages are available. The single winding of an autotransformer acts both as primary and secondary winding simultaneously. This makes it possible to obtain a smaller and lighter construction compared to classical dual-winding transformers. Autotransformers are integrated in Sentera transformer fan speed controllers for motor speed control in steps via voltage reduction.

This autotransformer can be used as a spare part for following types of fan speed controllers: STR-3-75L10
