400 V fan speed controller 0-10 V | DIN rail | 6 A
Product description

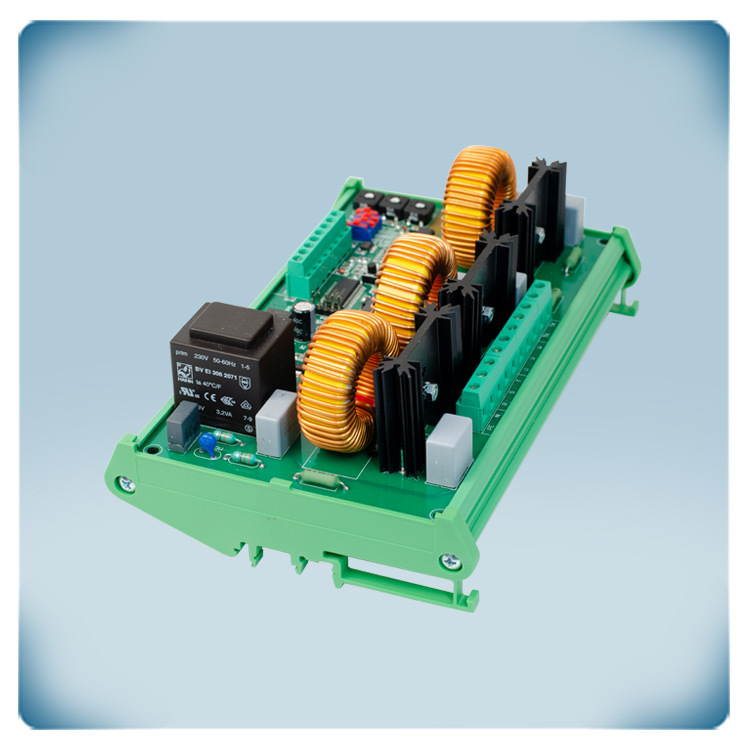

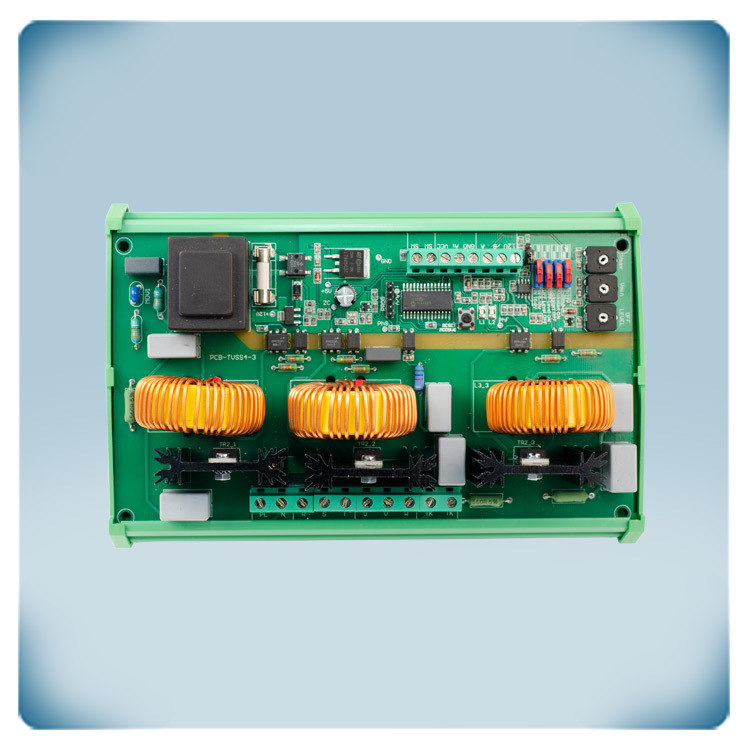

Discover the TVSS5-60CDT variable fan speed controller, engineered for precise control of three-phase 400V voltage controllable electric motors.
High and low speed are adjustable via internal trimmers.
Equipped with Modbus RTU communication and thermal contacts for overheating protection.
This controller ensures seamless connectivity and integration into industrial systems. With a max current of 6 A, the TVSS5 series offers remote control options, adjustable levels, and kickstart or softstart motor acceleration.
The analogue input type can be selected via jumpers or via Modbus RTU (0-10 V or 0-20 mA).
The TK monitoring function ensures motor deactivation in case of overheating, providing a reliable solution for expert motor speed control. Easily DIN-rail mounted."
Additional specifications and description
Analogue input
The requested fan speed can be set via the analogue input signal. This analogue signal can be 0-10V or 0-20 mA. This analogue input can be set in ascending or descending mode. In ascending mode, the motor will run at low speed when the analogue signal is at its minimum value (0 V). The motor will run at high speed when the analogue input is maximum (10 V). In descending mode, the operation is inversed.
In case there is no 0-10V signal available, you can connect an external 10 KOhm potentiometer via the integrated 12 VDC power supply.
The requested fan speed can be set via the analogue input signal. This analogue signal can be 0-10V or 0-20 mA. This analogue input can be set in ascending or descending mode. In ascending mode, the motor will run at low speed when the analogue signal is at its minimum value (0 V). The motor will run at high speed when the analogue input is maximum (10 V). In descending mode, the operation is inversed.
In case there is no 0-10V signal available, you can connect an external 10 KOhm potentiometer via the integrated 12 VDC power supply.
Remote control
The motor can be enabled or disabled via an external switch. This optional switch can be connect to the digital input of the fan speed controller.
The motor can be enabled or disabled via an external switch. This optional switch can be connect to the digital input of the fan speed controller.
Easy to configure
For most applications, this variable speed controller can be used with the default settings. If necessary, the settings can be customised via Modbus RTU or via the dip switches and internal trimmers.
For most applications, this variable speed controller can be used with the default settings. If necessary, the settings can be customised via Modbus RTU or via the dip switches and internal trimmers.
DIN rail mounting

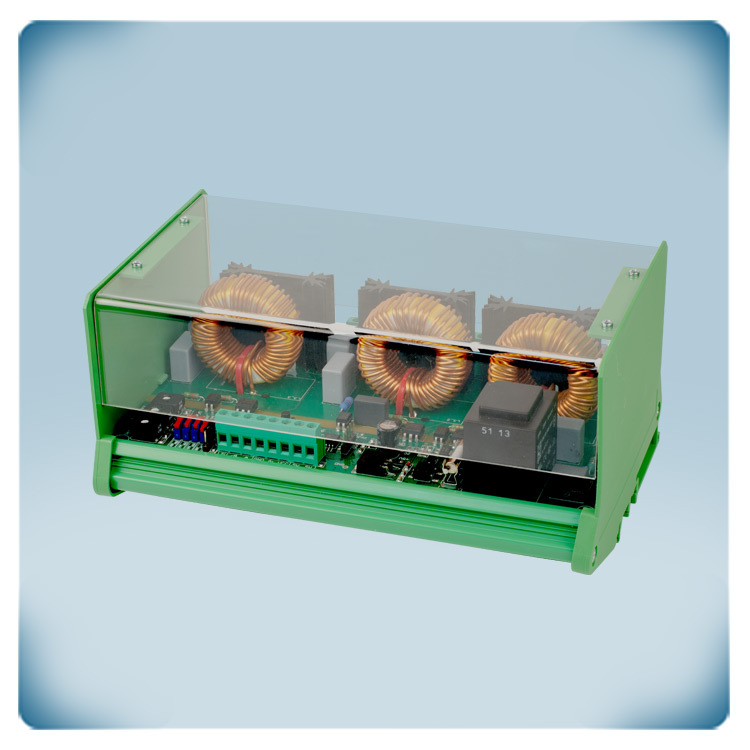

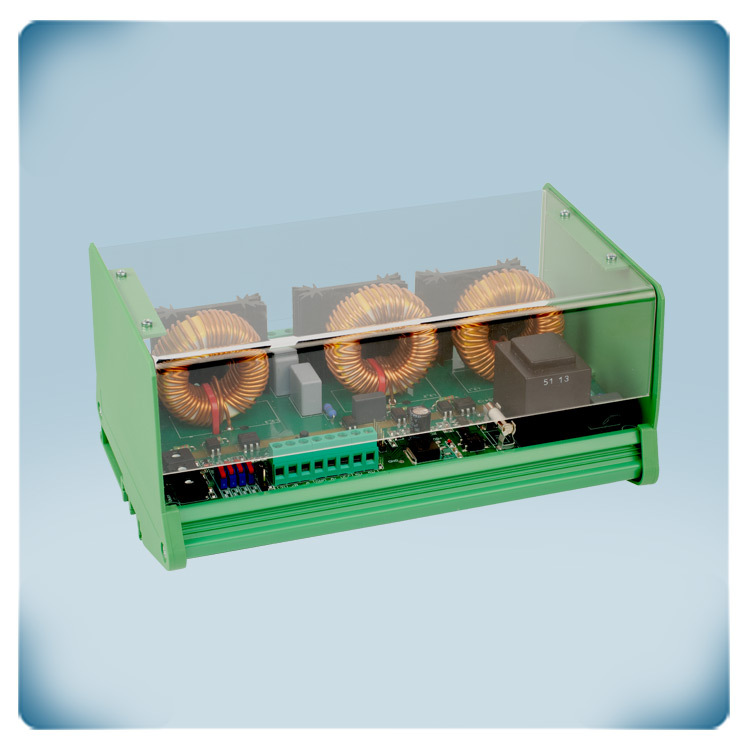

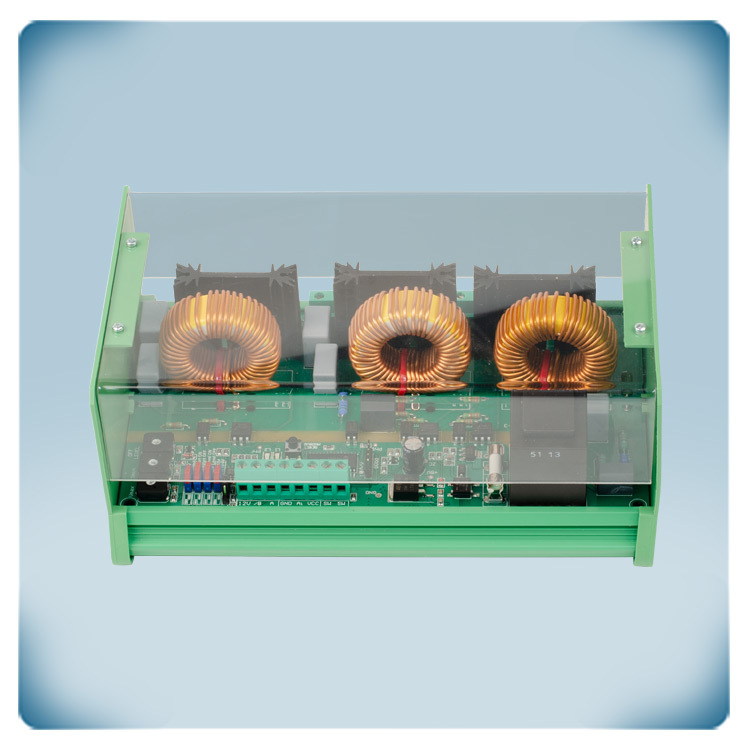

The enclosure can be DIN rail mounted and offers an IP20 protection against ingress of dirt, dust and moisture. The plastic cover offers protection against contact with live parts.
The enclosure can be DIN rail mounted and offers an IP20 protection against ingress of dirt, dust and moisture. The plastic cover offers protection against contact with live parts.
Thermal motor protection
This fan speed controller can monitor thermal motor contacts (TK or thermal contacts measure temperature in the motor windings). In case of motor overheating, the TK monitoring function will disable the motor to prevent motor damage. If your motor is not equipped with TK contacts, bridge both TK terminals to simulate normal motor temperature.
