AC motor 1,5 A | Remote fan speed control | operating LED indicator

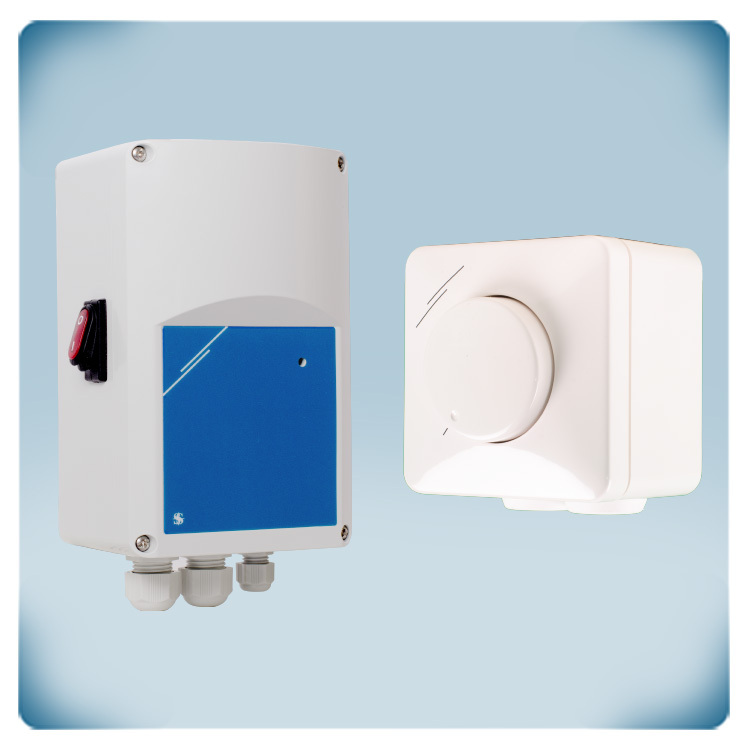

The EVS-1-15-DM is an electronic speed controller for automatic speed control of single-phase voltage-controllable motors (230 VAC / 50—60 Hz). Equipped with Modbus RTU communication, this unit offers remote control options, adjustable off level, and min. and max. output voltage settings. The maximum current is 1.5 A and the supply voltage is 230 VAC. The integrated ON-OFF switch and digital input enable versatile motor control. Adjustments are possible via internal trimmers and Modbus RTU.

Control your ventilation with our LTV Potentiometer, a straight forward 0-10 V device designed for optimal control of EC fan speed, AC fan speed controllers or valve actuators. This potentiometer empowers you to fine-tune your ventilation system effortlessly, ensuring a comfortable and controlled environment. Operating at a supply voltage of 230 VAC, the LTV potentiometer delivers a variable output signal ranging from 0 to 10 VDC, easily adjustable via its user-friendly rotary knob. This knob features a distinctive off-position, ensuring a seamless transition to zero output in a simple turn. The splash-proof enclosure further enhances its adaptability, allowing for both inset mounting (IP44) and surface mounting (IP54), making it a reliable choice for diverse installation needs. Experience clarity in control with the integrated green LED indicator, providing a visual cue when the output value surpasses 0 V. The LED comes to life as the rotary knob is turned clockwise, signaling an active state away from the off-position. Conversely, in the off-position, the green LED deactivates, maintaining a clear visual representation of the system's status.
