Schematic overview
AC motor 10 A | Remote fan speed control | operating LED indicator
Solution description

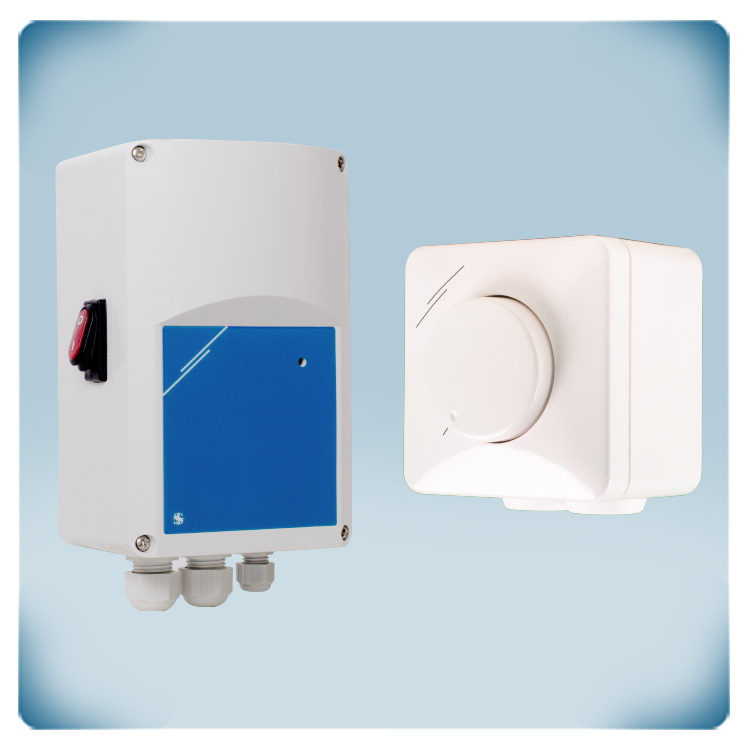

Remote control for AC fans with single-phase motor. The maximum motor current is 10 A. Typically, this solution is used to control AC fans or pumps in HVAC applications. The motor speed can be selected via the external potentiometer. At zero position, the motor stops. The LED on the potentiometer lights up when the motor is enabled. The maximum distance between potentiometer and fan speed controller depends on many factors but should be kept short.
